Bastone

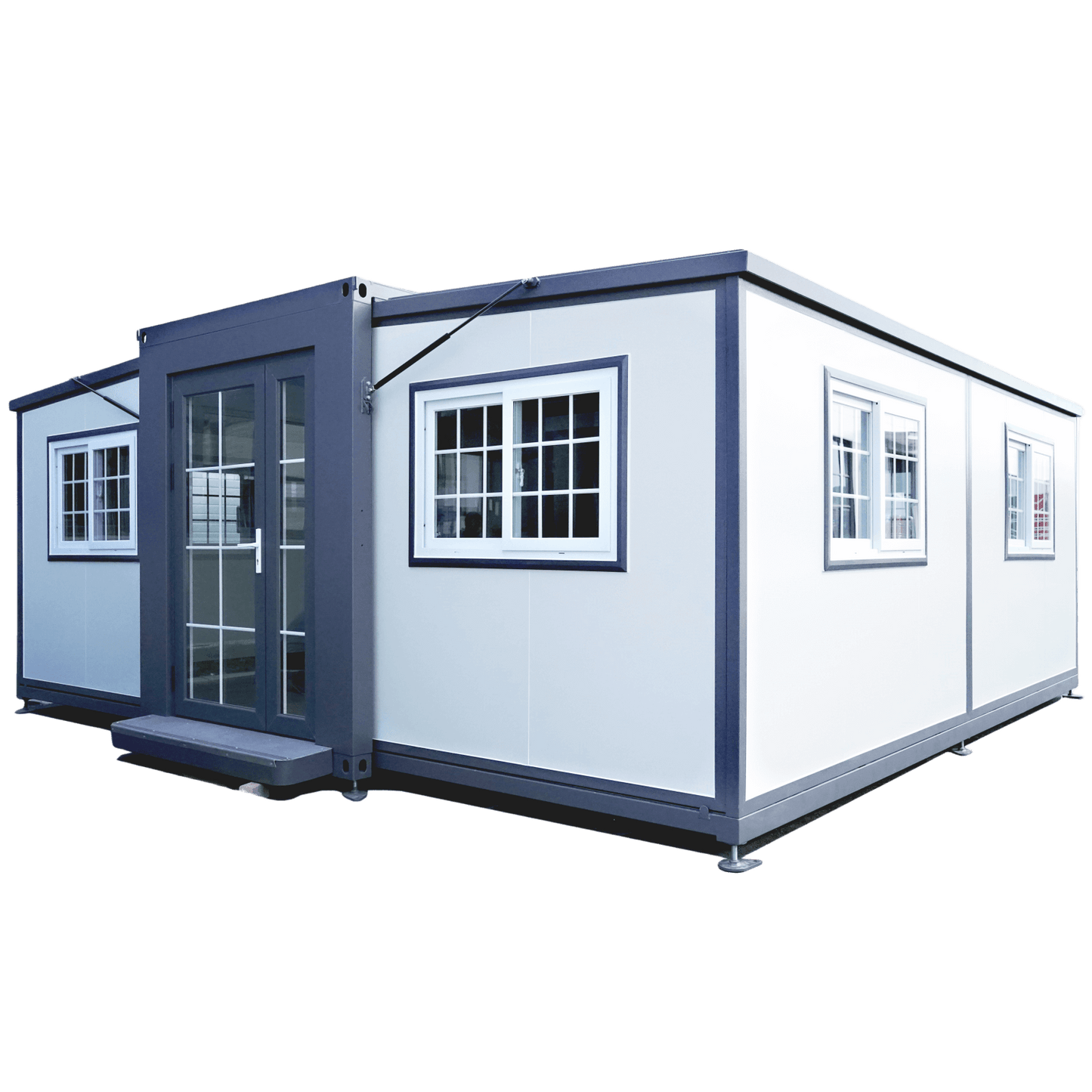

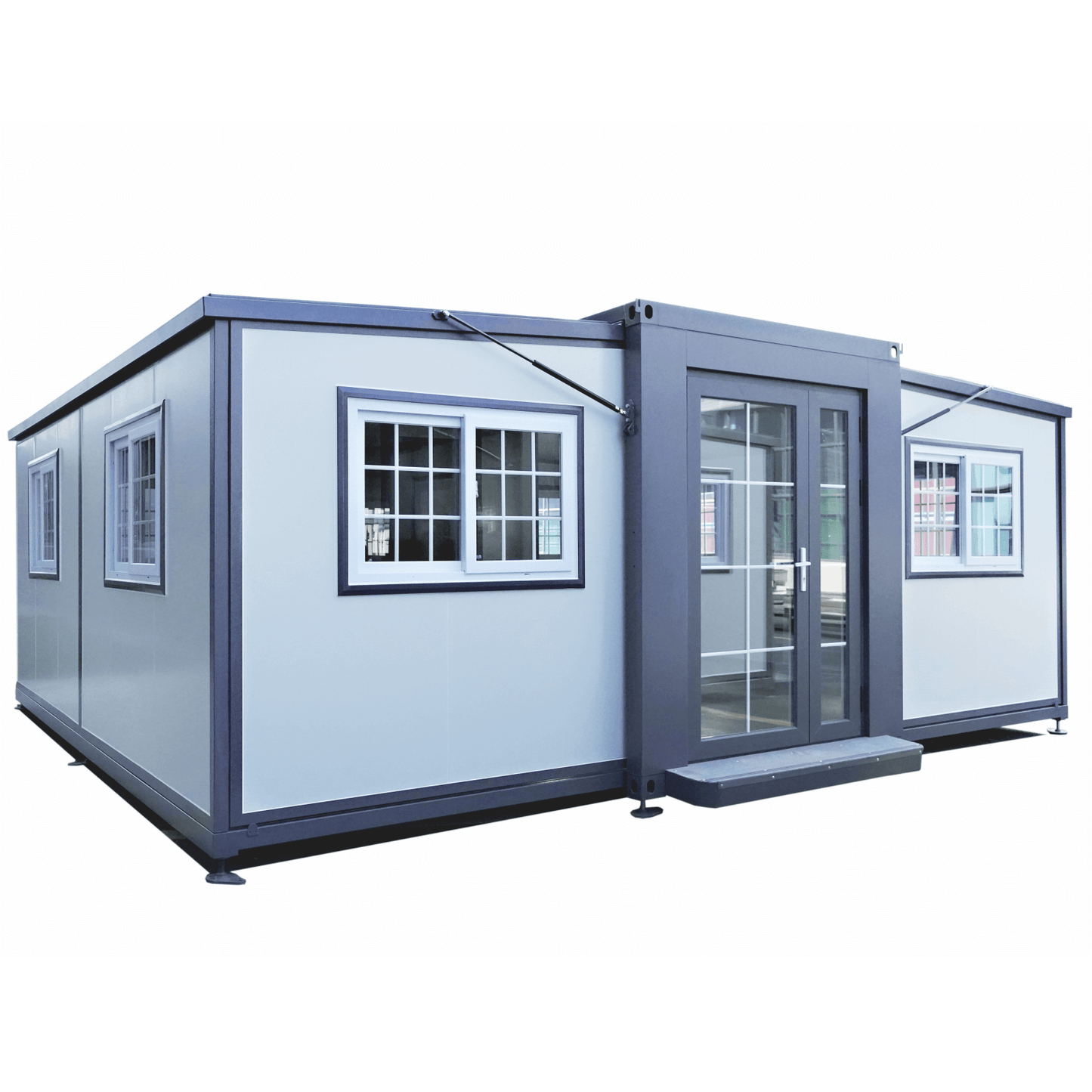

Mobile Expandable Prefab House 13ft x 20ft

Mobile Expandable Prefab House 13ft x 20ft

Regular price $20,999.00 USD
Regular price $0.00 USD Sale price $20,999.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

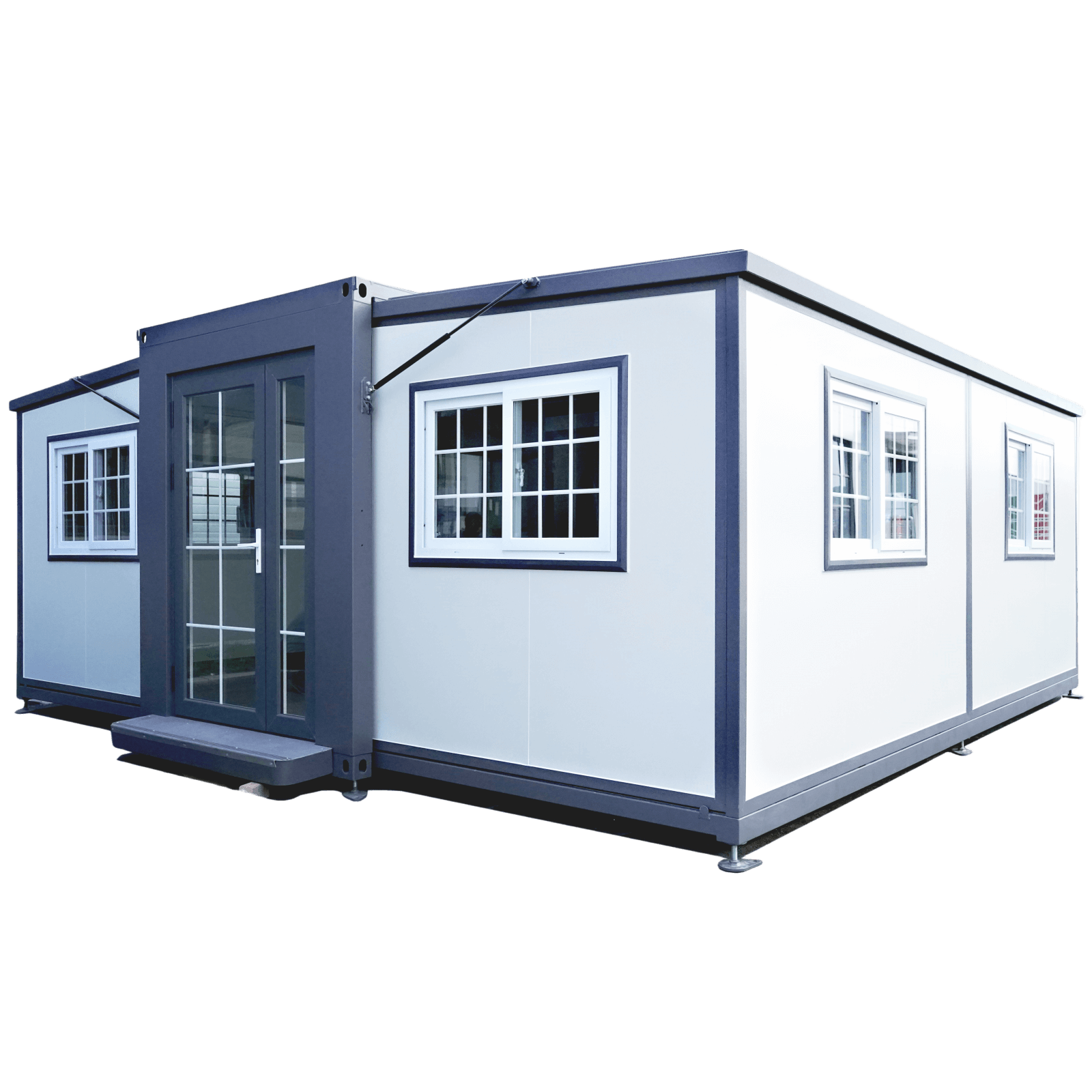

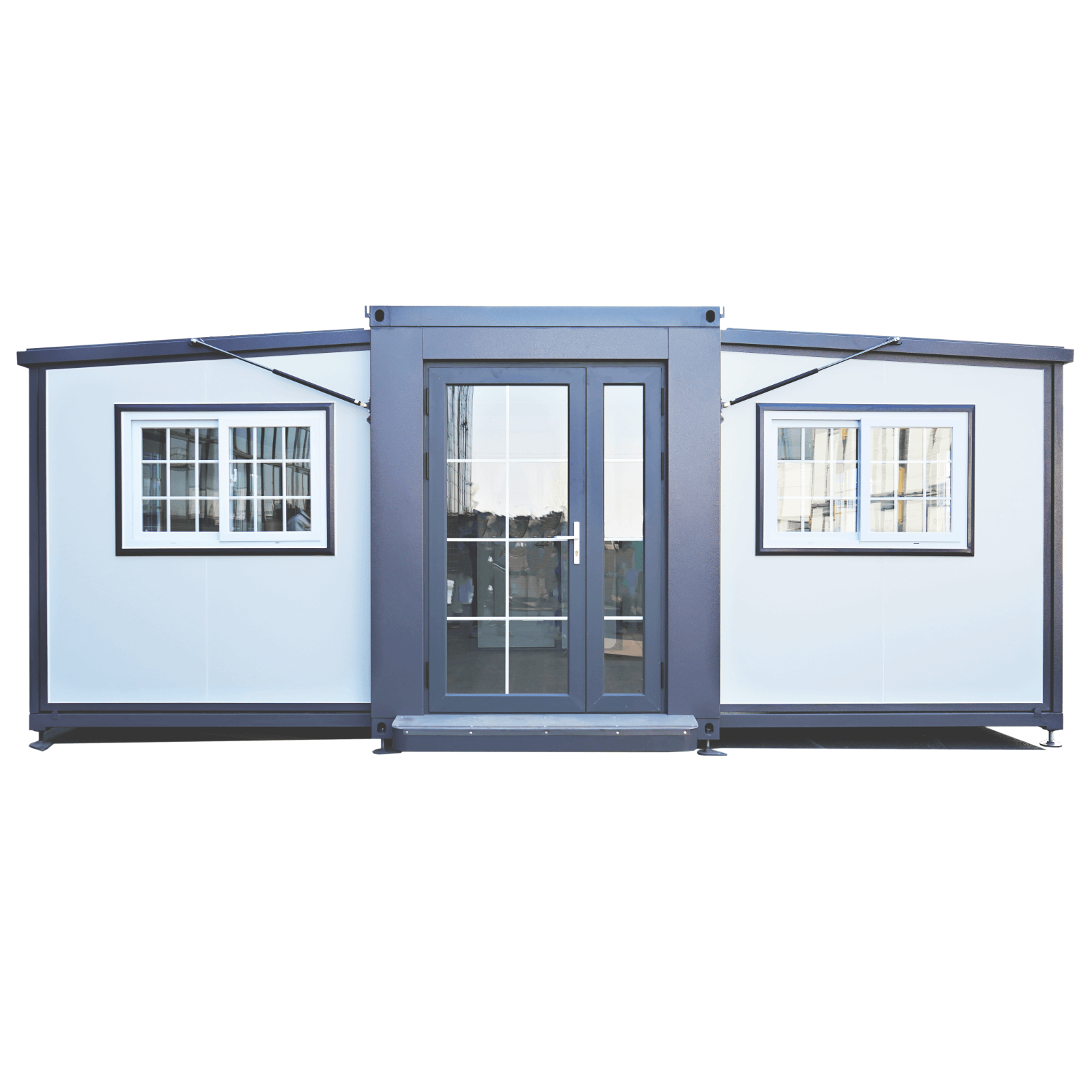

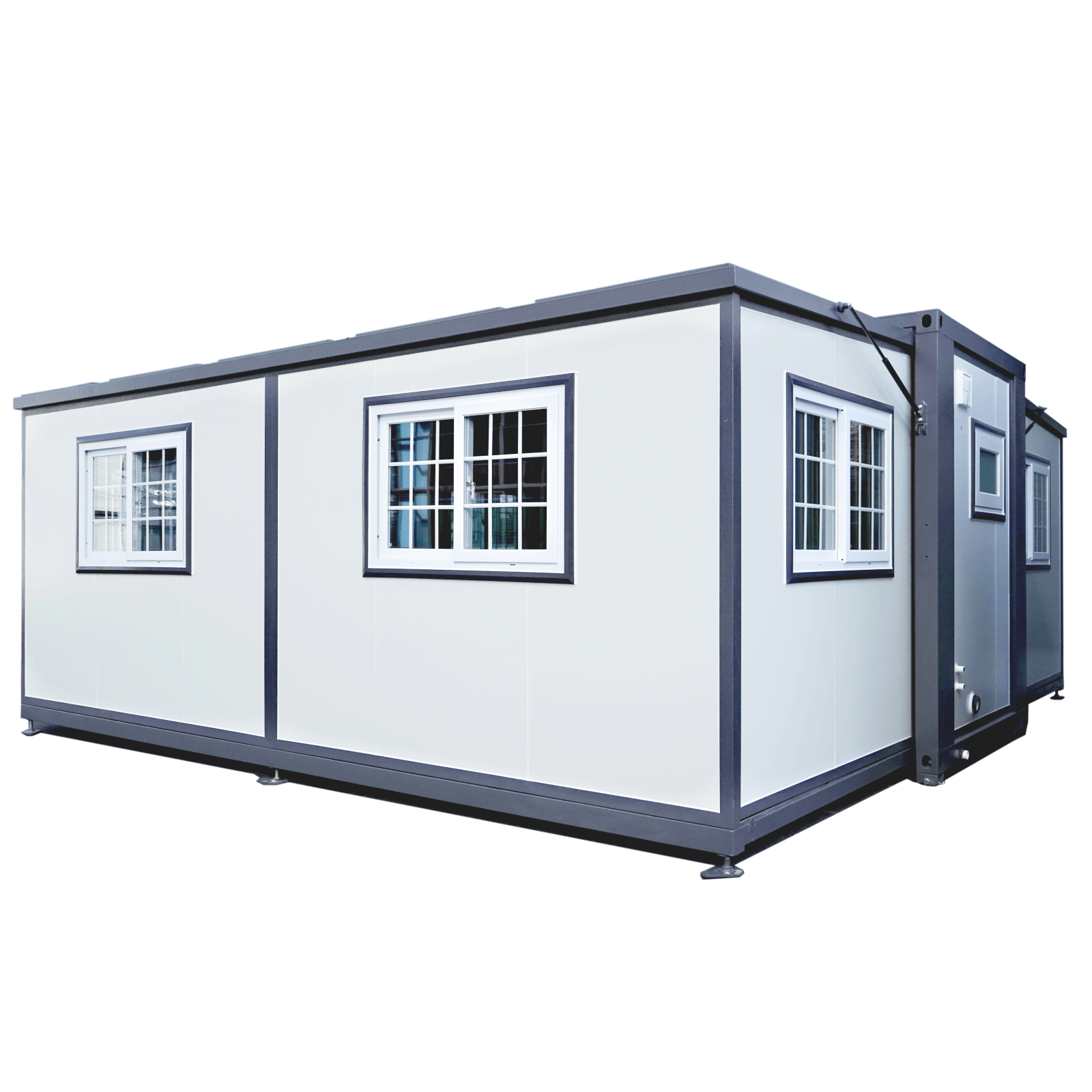

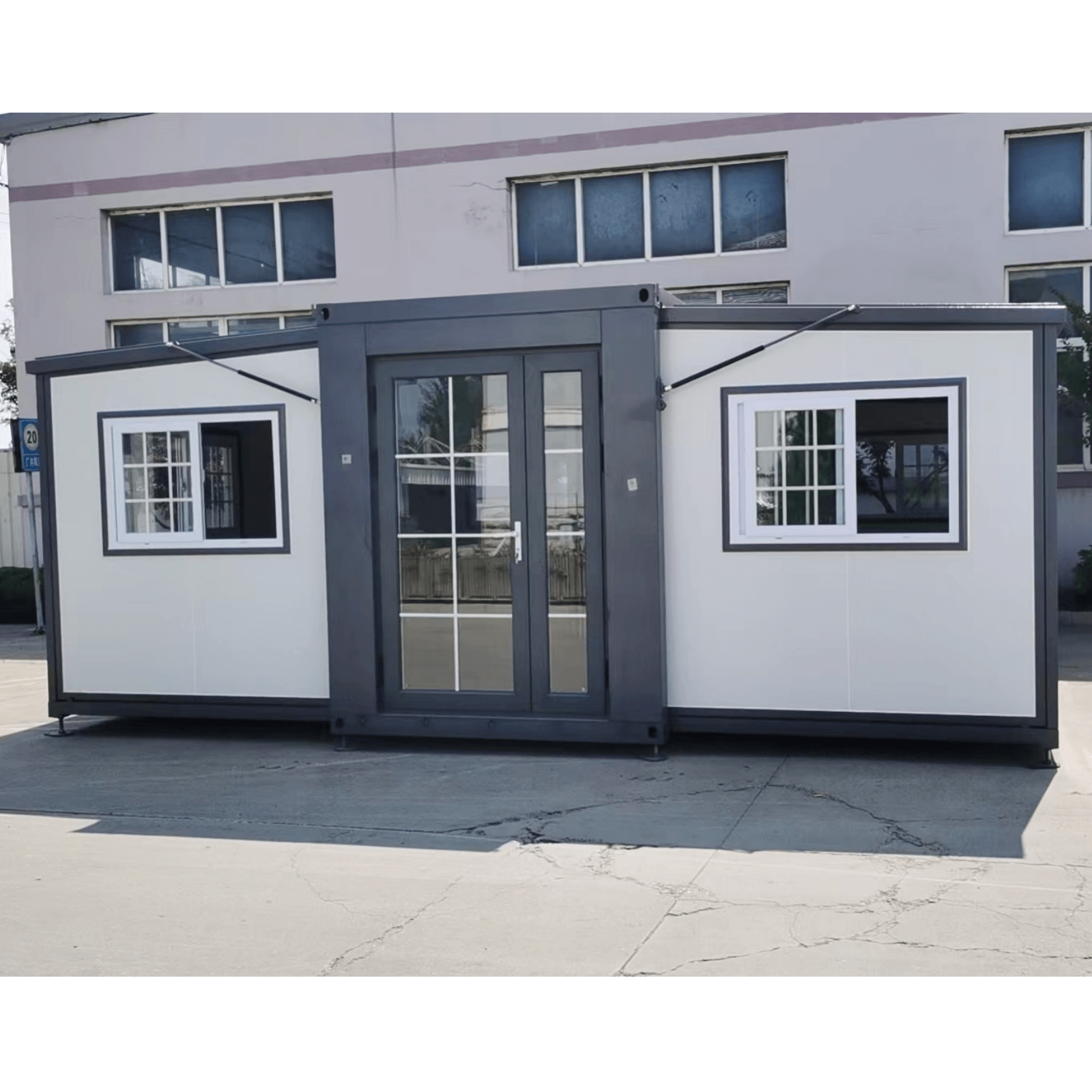

The 13ft x 20ft expandable prefab structure serves multiple functions including office space, accommodation, dining facilities, or utility areas. Its versatile design addresses requirements for construction sites, field operations, municipal housing, rental properties, and commercial applications. When collapsed, this unit offers space efficiency, aesthetic appeal, and exceptional mobility for transport convenience. Engineered with superior-grade components, this prefab solution delivers outstanding structural integrity and optimal thermal performance.

Specification

Description

Specifications

Dimension(LxWxH) 20'x13.8'x8.3', 276 Sqft

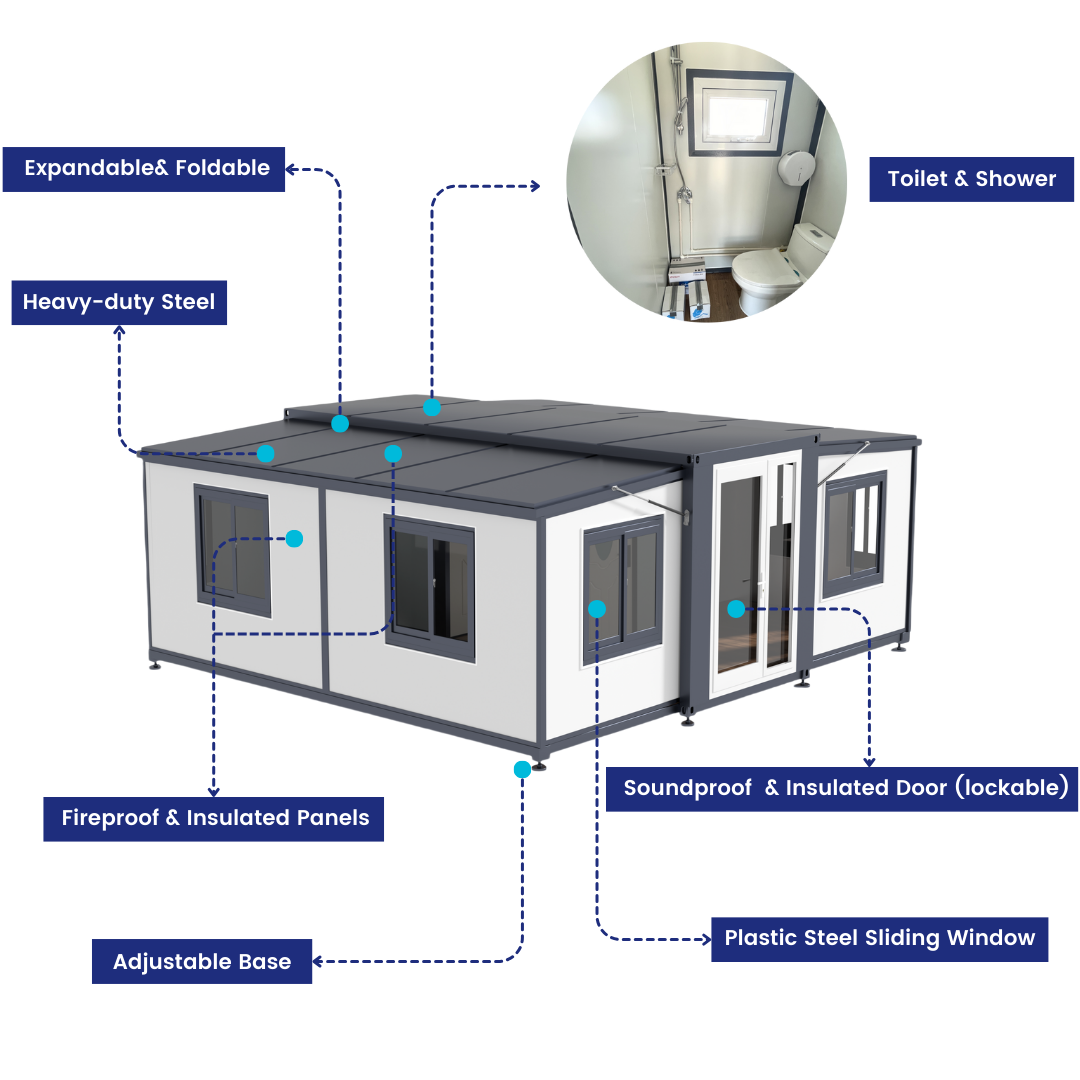

Frame Structure

  • Steel Frame structure
  • Flame retardant composite wall panel

Frame surface treatment process

Plastic spraying

Snow Load 40 lbs/ft²
Wind Load 70 miles/h

Wall panel

50mm EPS flame retardant composite wall panel

Roof

40mm EPS flame retardant composite wall panel

Floor Ecological board + PVC floor leather
R-value 7.09~8.27
Outer door Broken bridge double door

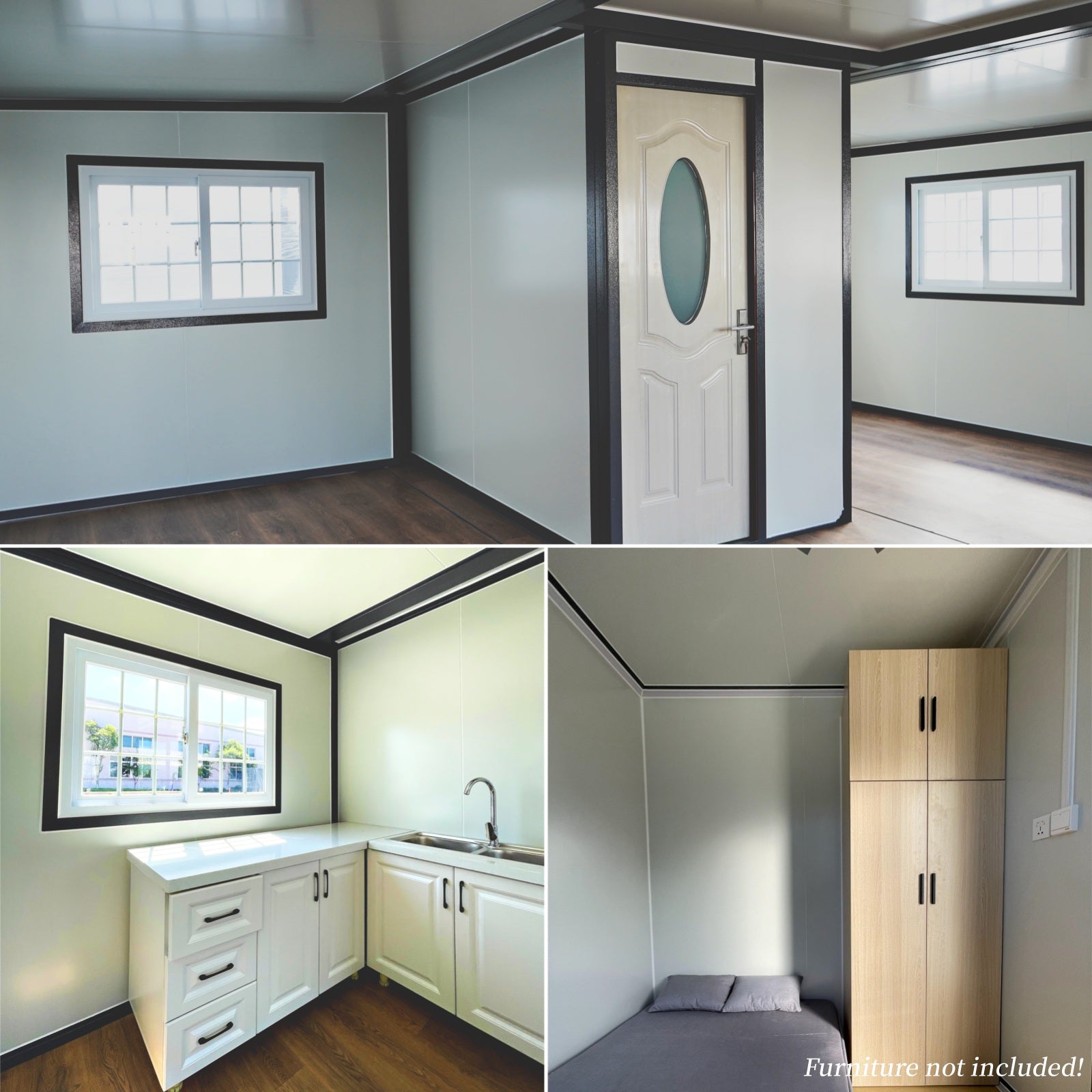

Bathroom door Wooden door + emulsified tempered glass + door rail

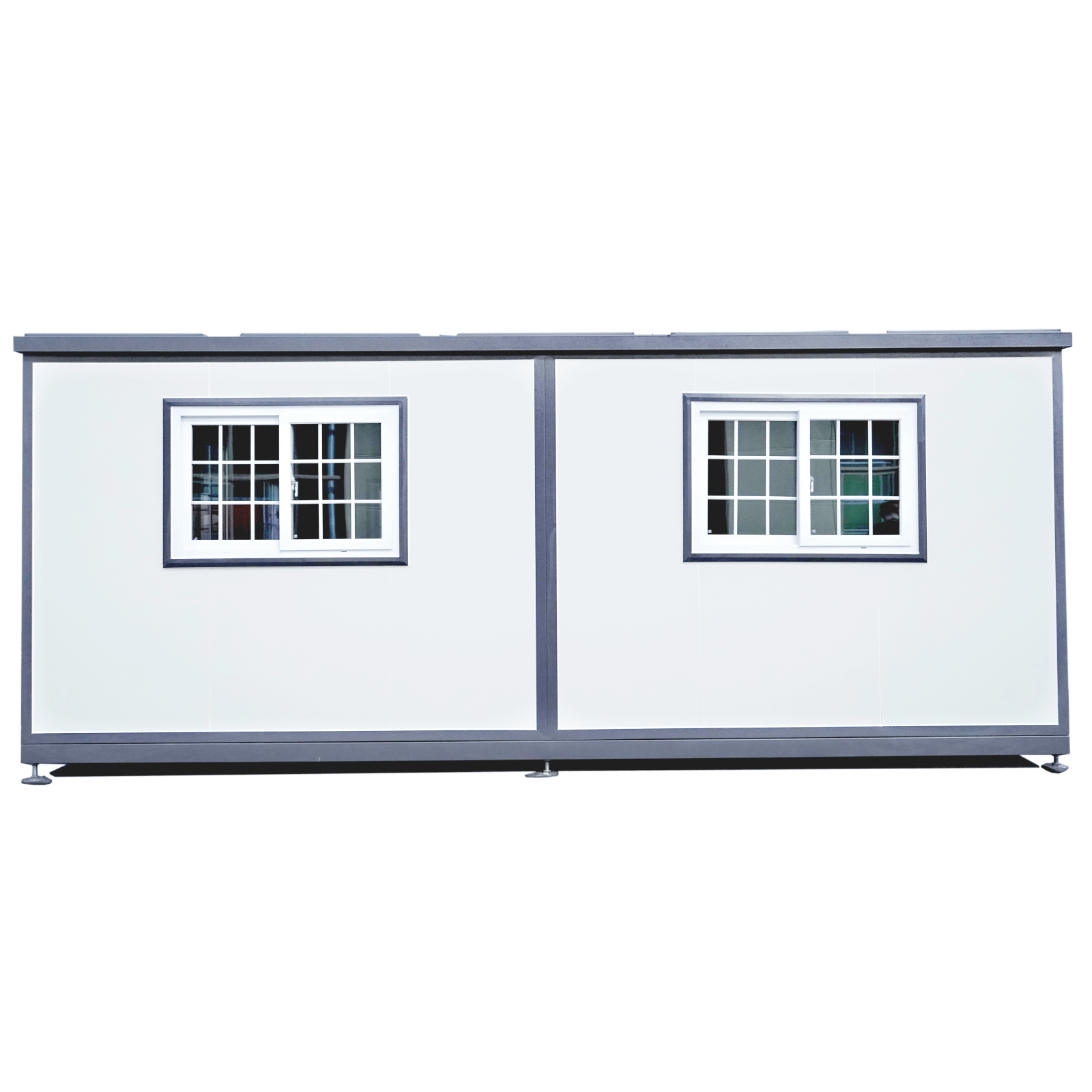

Windows (large) Plastic steel sliding lattice window
Windows (small) Broken bridge opening windows
Hydraulic strut 3500N
Hinge block 1200 lbs
Doorstep Steel body + non-slip mat

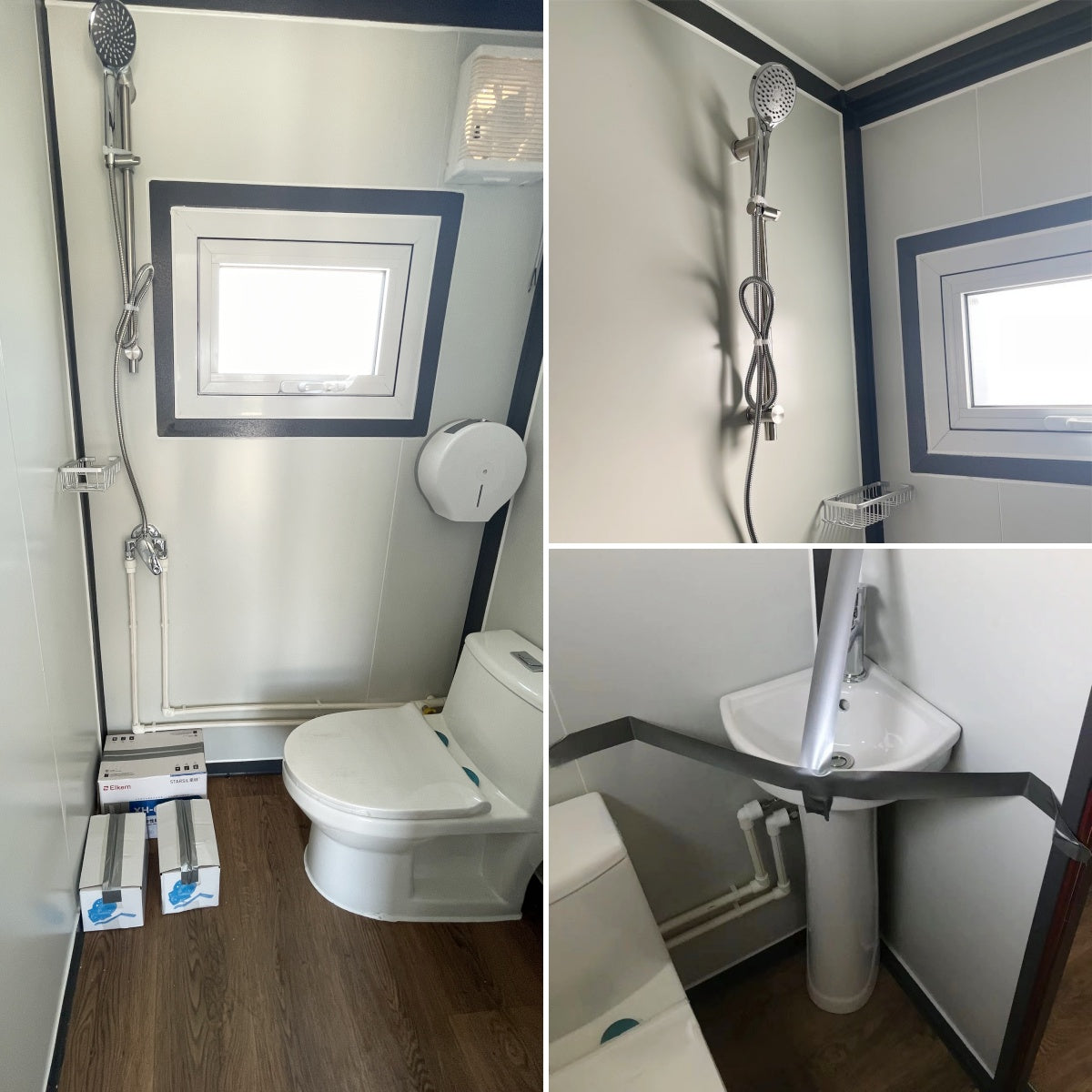

Bathroom interior configuration washbasin, ceramic toilet, toilet brush, drawer box, blind ventilation fan, shower faucet, PPR water inlet pipe (20), and PPR drain pipe (40+50).
Reminder Mobile Prefab House is not wired. Hire an electrician for American standard wiring. Stay safe!
Country of Origin China

Feature

  • Quick Assemble, finished interior decoration
  • Condition: New
  • Use: Hotel, House, Kiosk, Booth, Office, Sentry Box, Guard House, Shop, Toilet, Villa, Warehouse, Workshop, Plant
  • Style: Portable, Container Home
  • Wind load: Up to 70mph, depending on foundation and specific circumstances. We highly recommend pouring concrete on the legs to maximize stability. Please don't stay inside in extreme weather conditions (storms, tornados, hurricanes, floods, blizzards, etc.)

FAQ

  • Can I hang something on the wall? - The wallboard is composited with foam in the middle, so you cannot screw in the wall. You will need to use self-adhesive hooks for hanging, and the load capacity depends on the hook.
  • Can I purchase 2 of them and combine them together without the wall? - Technically, no. There is still a gap between the two units.
  • Snow Load: The unit is designed for outside usage and can withstand a heavy snow load. The unit is safe before the snow reaches 6.6ft high on the roof.  However, it is recommended that take off the snow in time and don't stay inside in extreme weather conditions (storms, tornados, hurricanes, floods, blizzards, etc)

Package Size

  • LxWxH (inch): 155.11x82.68x99.41
  • Weight (lb): 5644 lb
  • A forklift or equivalent is required for unloading.

Additional Details

Due to the extra large size, the product will be shipped via flatbed trucks, and it is customers' responsibilities to unlaod the product from the trucks. Please have forklifts or crane ready to unload. Please make sure the forklift has enough capacity to unload and balance the product when unloading. A crane is recommended.

Mobile Prefab House is not wired. Please hire an electrician for American standard wiring. Stay safe! We recommend you connect toilets to the sanitary sewer system and connect water to the pipe system. If not, you may need tanks outside the structure for waste.
