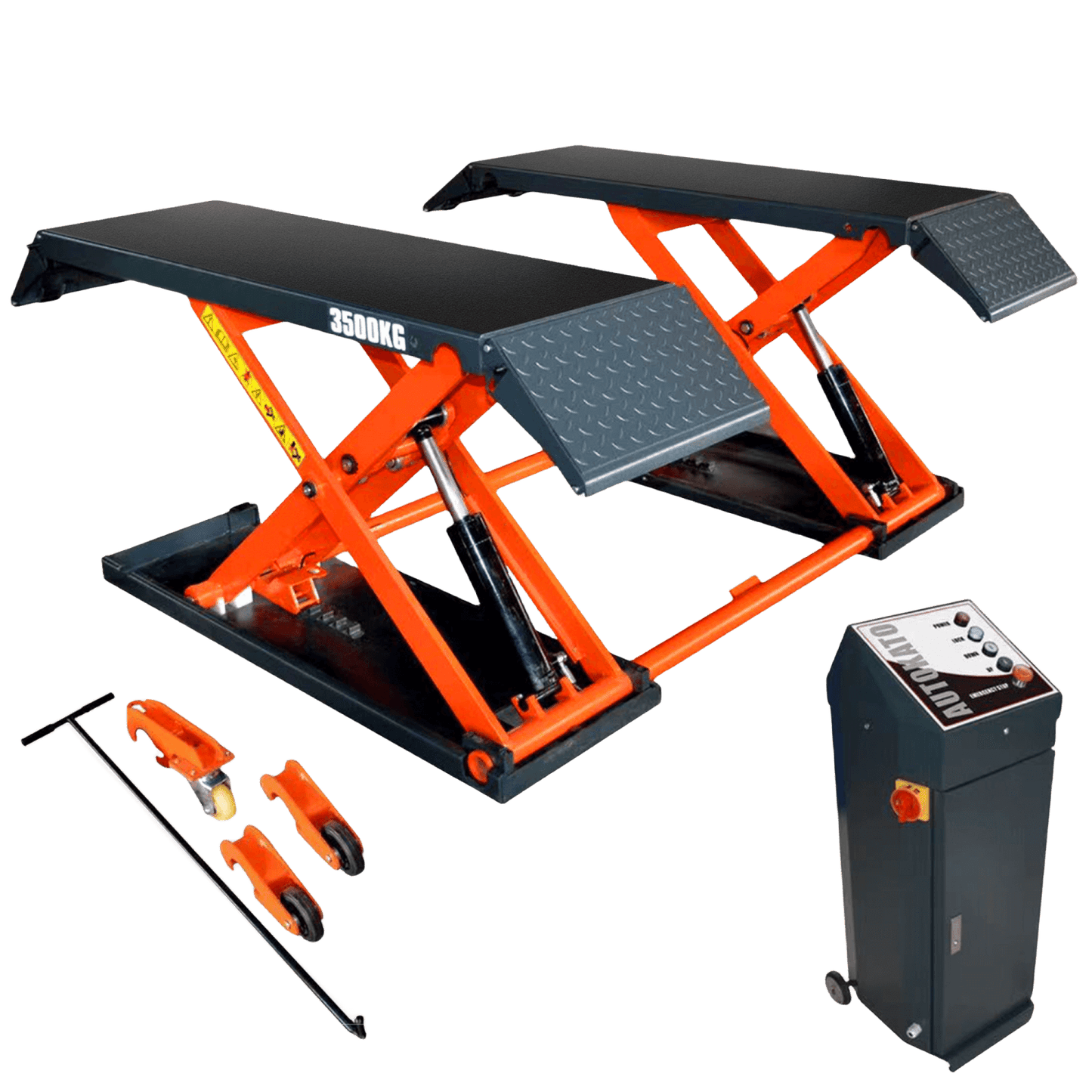

KT-X80 Mid-rise Scissor Lift, Pneumatic Release (Two variations for voltage, 110v and 220v)

KT-X80 Mid-rise Scissor Lift, Pneumatic Release (Two variations for voltage, 110v and 220v)

Regular price $2,999.00 USD
Regular price $0.00 USD Sale price $2,999.00 USD
Sale Sold out
Shipping calculated at checkout.
Motor
Quantity

Enhance your workshop with the KT-X80 Mid-rise Scissor Lift, featuring a pneumatic release system for smooth, efficient operation. Designed to handle substantial loads, this lift raises vehicles to an ideal height for tasks like brake servicing and tire changes. Its scissor mechanism guarantees stability, while the pneumatic function streamlines lifting and lowering processes. Available in 110v and 220v versions, the X80 combines reliability and precision, making it an essential tool for professional automotive maintenance.

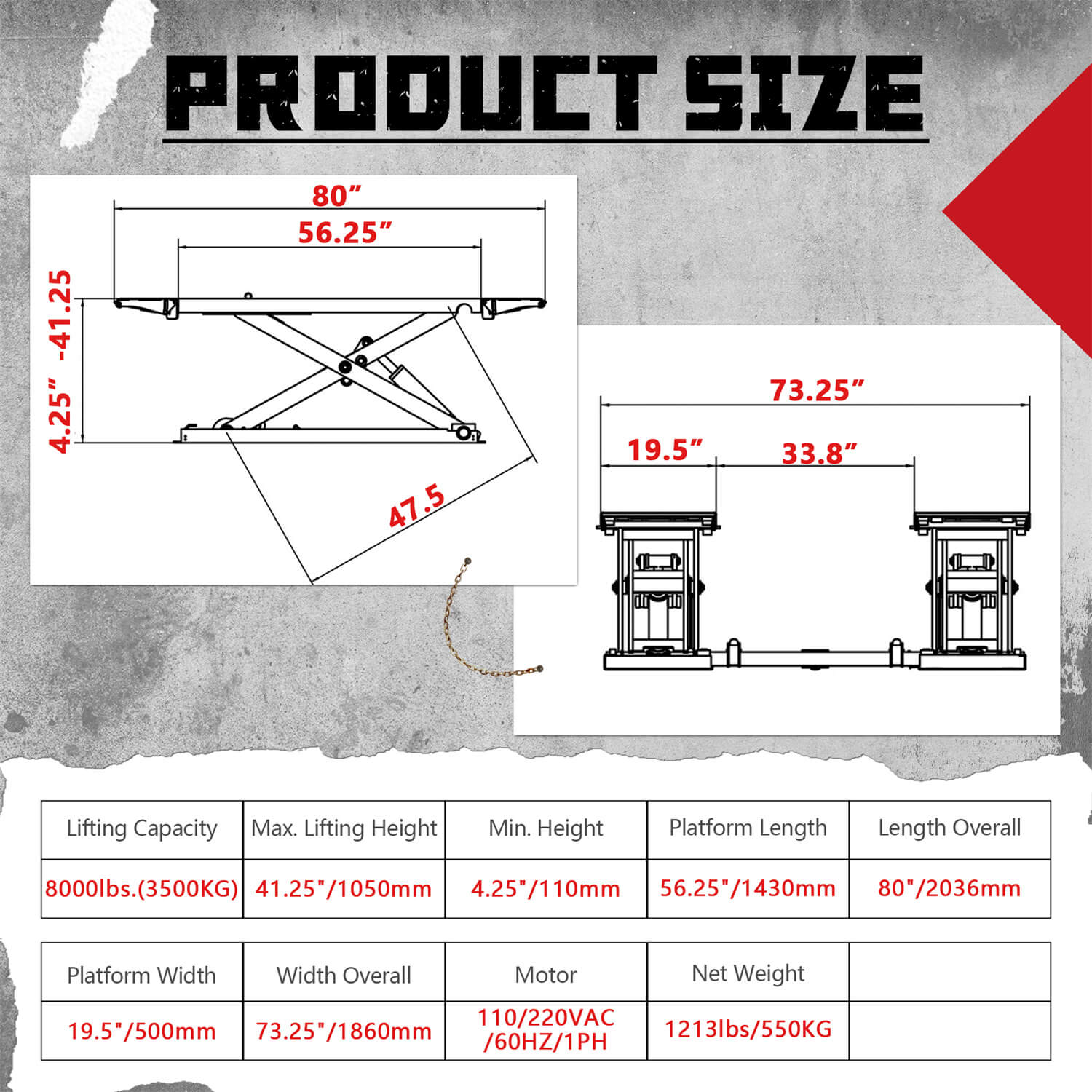

Specifications

Dimension(LxWxH)
Net weight 1213 lbs
Lifting Capacity 8000lbs/3500KG
Max. Lifting Height 41.25"/1050mm
Min. Height 4.25"/110mm
Length Overall 80"/2036mm
Width Overall 73.25"/1860mm
Platform Length 56.25"/1430mm
Platform Width 19.5"/500mm
Motor 110/220VAC/60HZ/1PH

Feature

  • 8000lbs(3500KG) lifting capacity.
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
  • Mobile or fixed mount design.
  • Starting-up system design.
  • Pneumatic safety release.
  • 24V safe control system.
  • Height limit switch.
  • Composite rubber lifting blocks included.
  • Comes with self-lubricated bushing and bearing.
  • Drive-up ramps lock design as platform extension for long vehicles.
  • The portable, mobile kit included making the lift move in your garage easily.
  • Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working with 110(220)V/ 60HZ/ 1PH.
  • The unit needs to be connected to a compressed air source. For customers without an air compressor, we recommend our electric model.

                              Package Size

                              • LxWxH (inch):
                                Box A: 78x63x9;
                                Box B: 17x15x43.
                              • Weight (lb):
                                Box A: 1190;
                                Box B: 132.
                              • A forklift or equivalent is required for unloading
