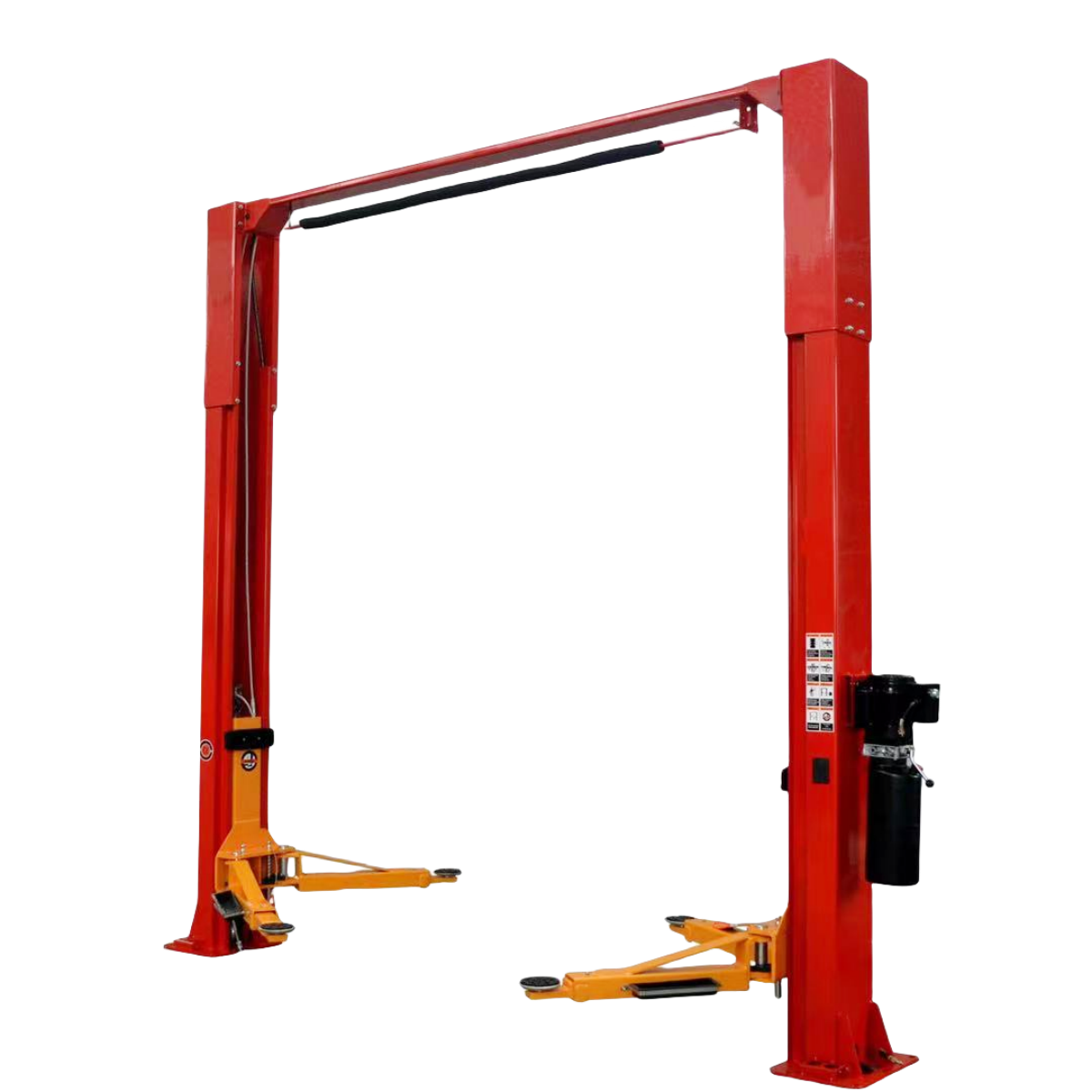

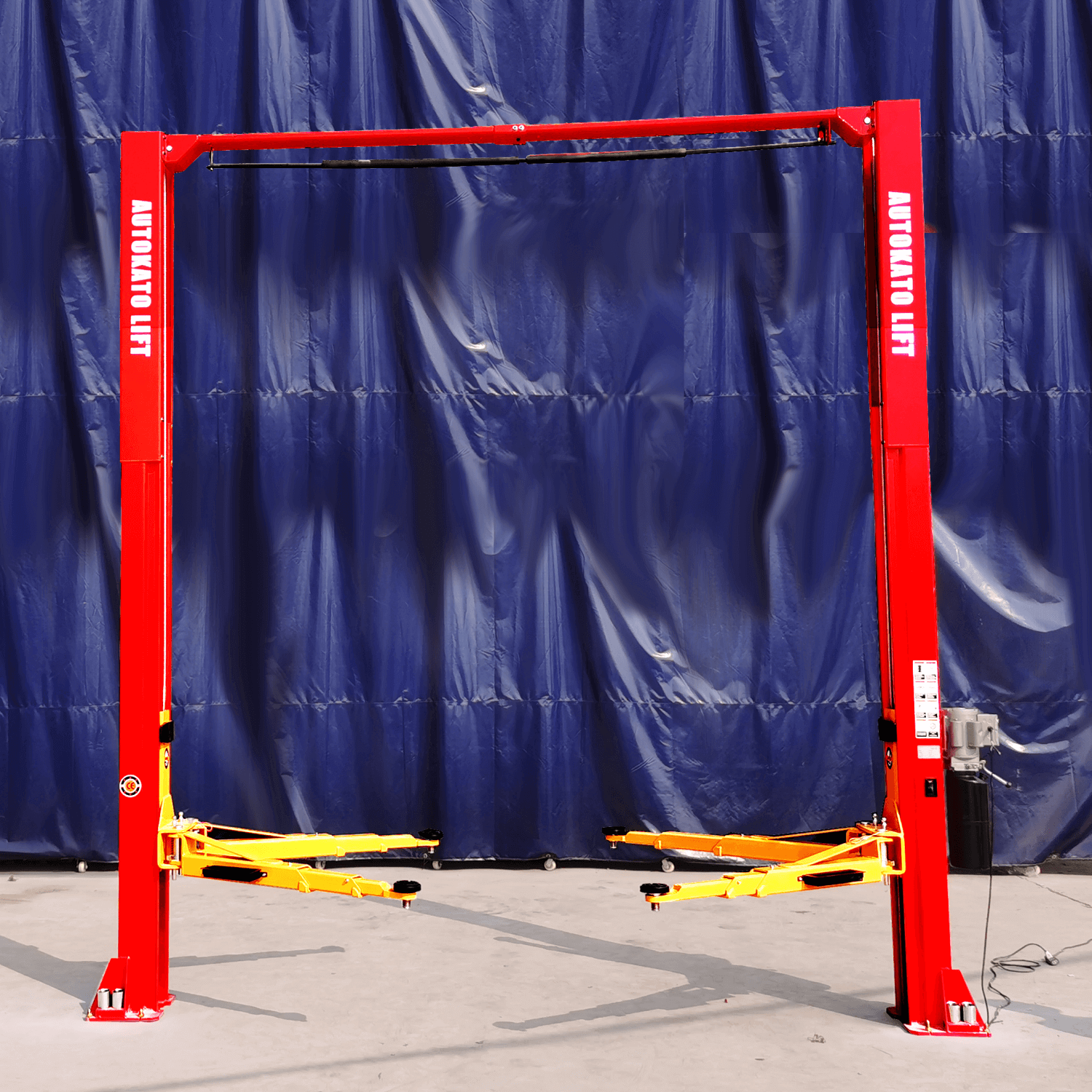

The KT-M120 Two Post Clear-floor Vehicle Lift delivers exceptional strength and precision with its 12,000 lbs lifting capacity and symmetrical arms, ensuring stable and secure elevation for a wide range of vehicles. Its advanced bilateral unlocking system provides synchronized operation, enhancing safety during every lift. Designed for professional workshops and serious enthusiasts, this lift is ideal for heavy repairs and routine servicing alike. The clear-floor configuration offers unobstructed access beneath vehicles, optimizing your workspace for efficiency and ease. Experience reliable performance and expert engineering with the KT-M120.
Specifications

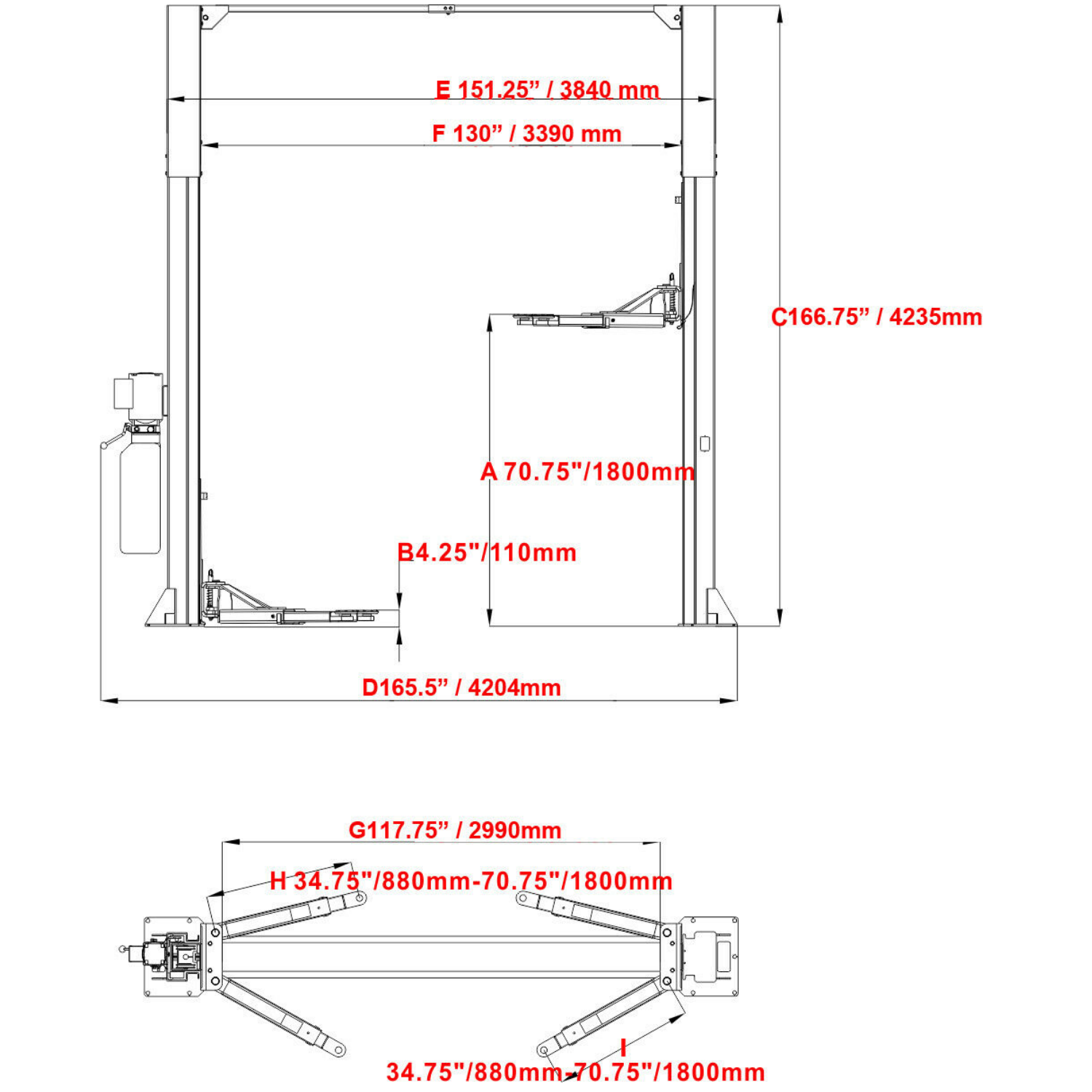

Dimension(LxWxH)
Net weight
1653 lbs
Max. Lifting Height
70.75"/1800mm
Lifting Capacity
12000lbs/5500KG
Min. Height
4.25"/110mm
Height Overall
166.75" / 4235mm
Width Overall
165.5" / 4204mm
Outside Column
151.25" / 3840mm
Inside Column
130" / 3390mm
Drive-Thru Clearance
117.75" / 2990mm
Motor
220VAC/60HZ/1PH
Feature

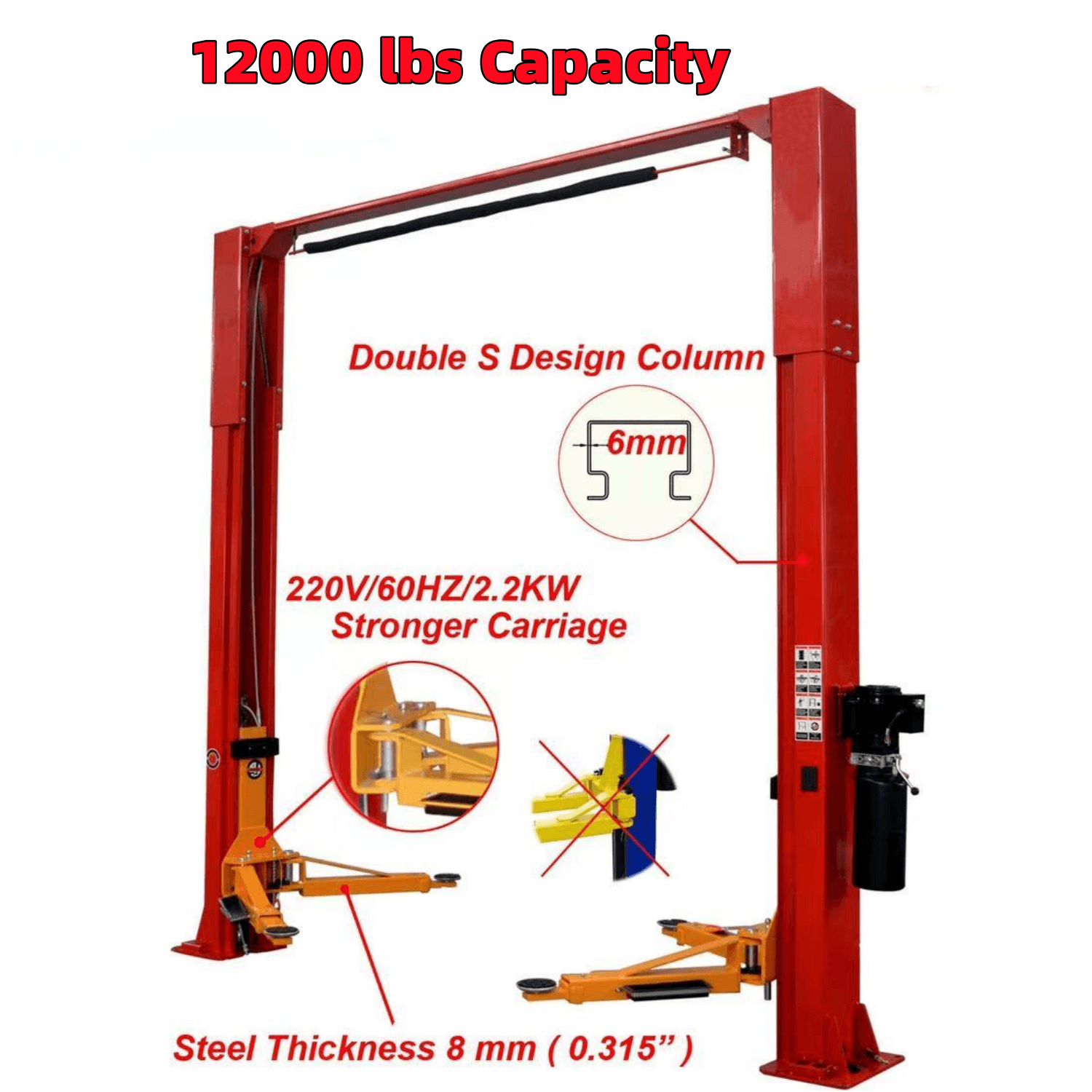

12000lbs(5500KG) lifting capacity.
CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
Manual safety release from two sides.

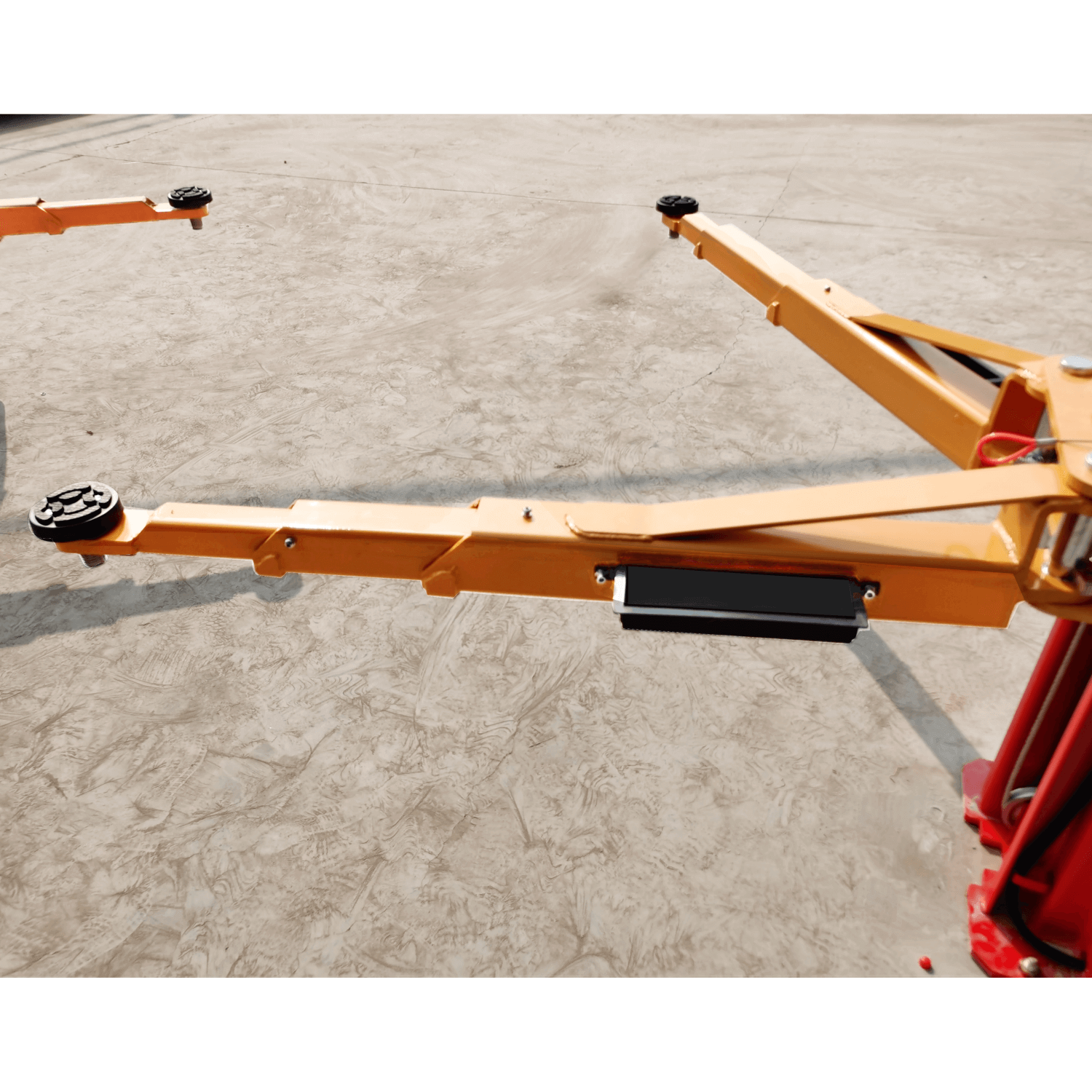

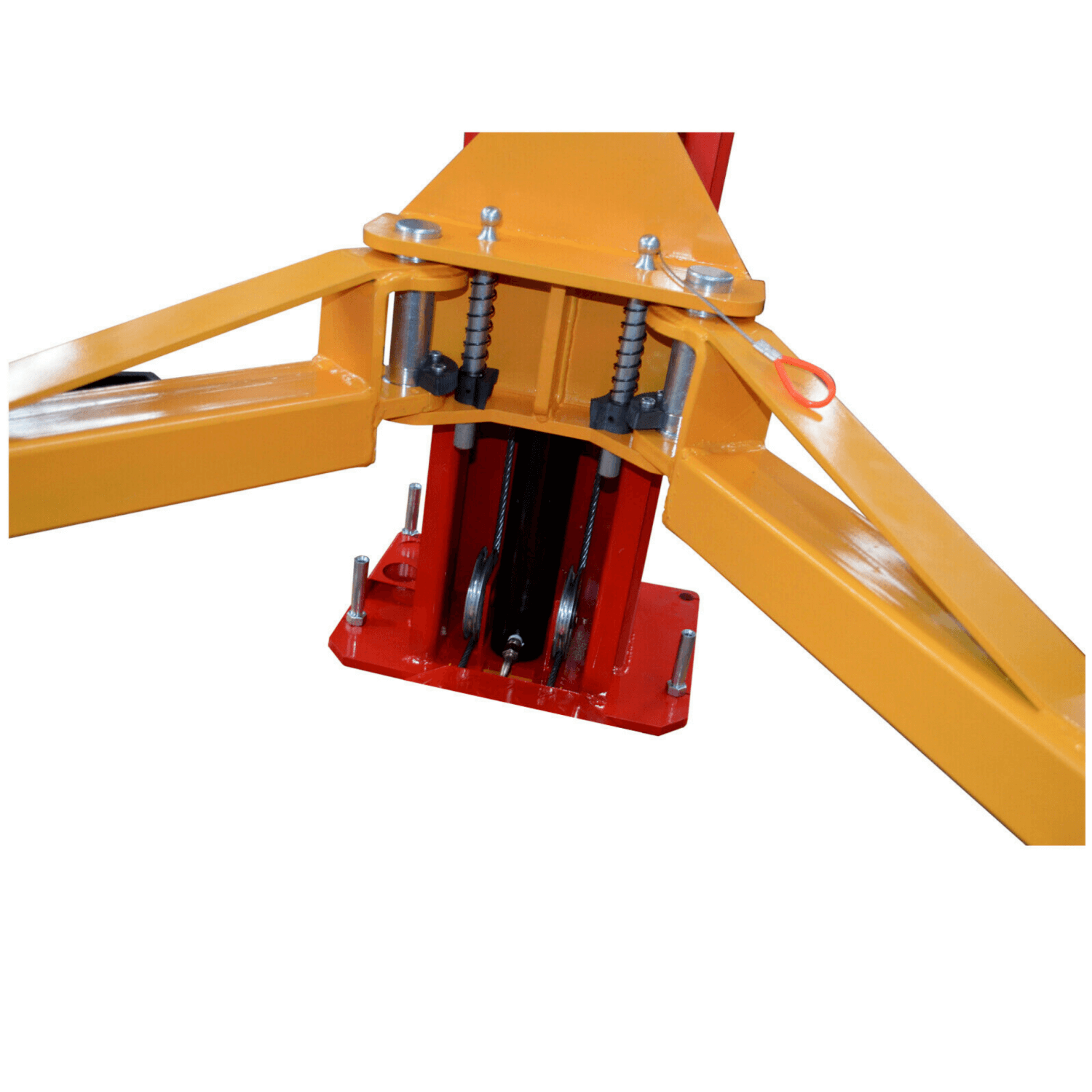

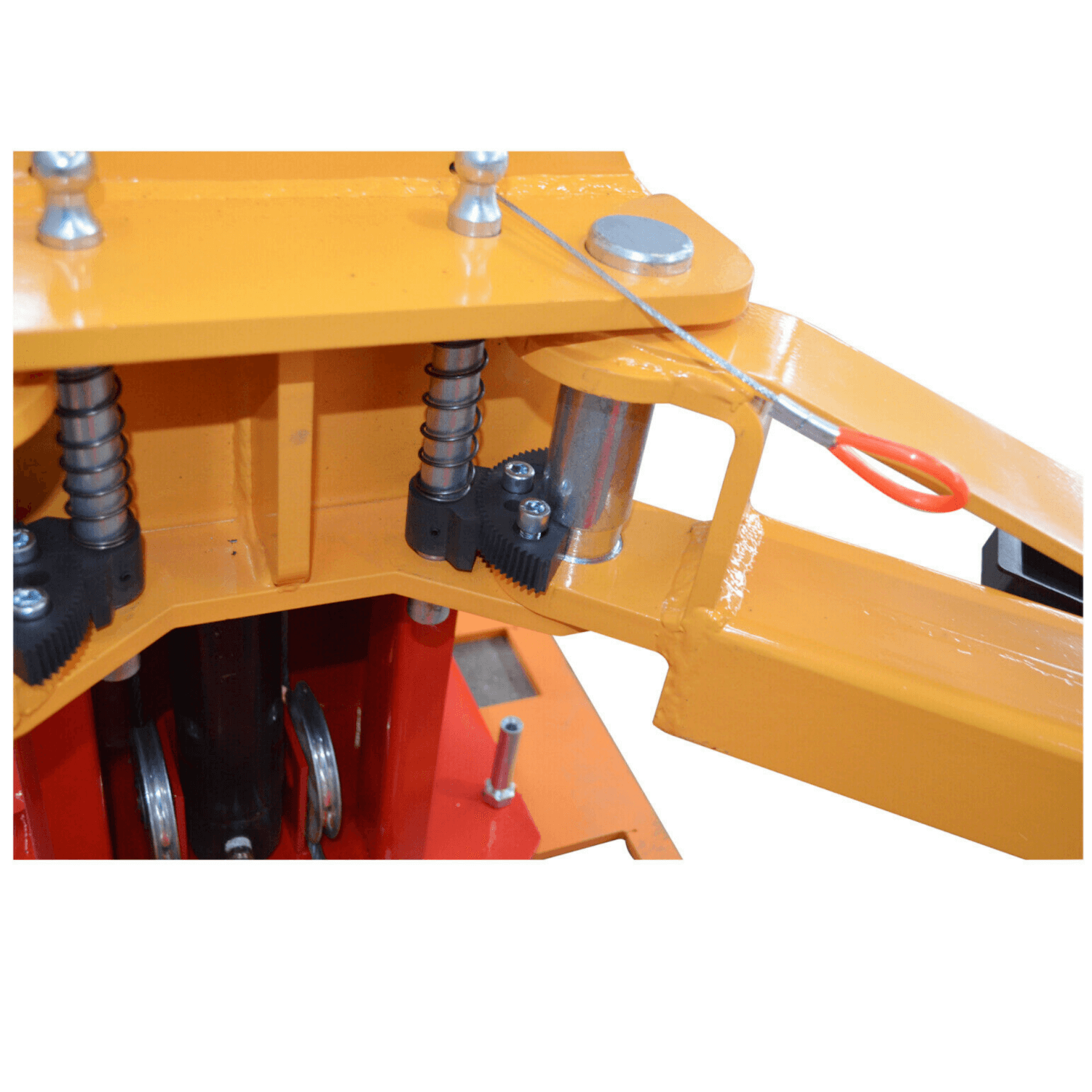

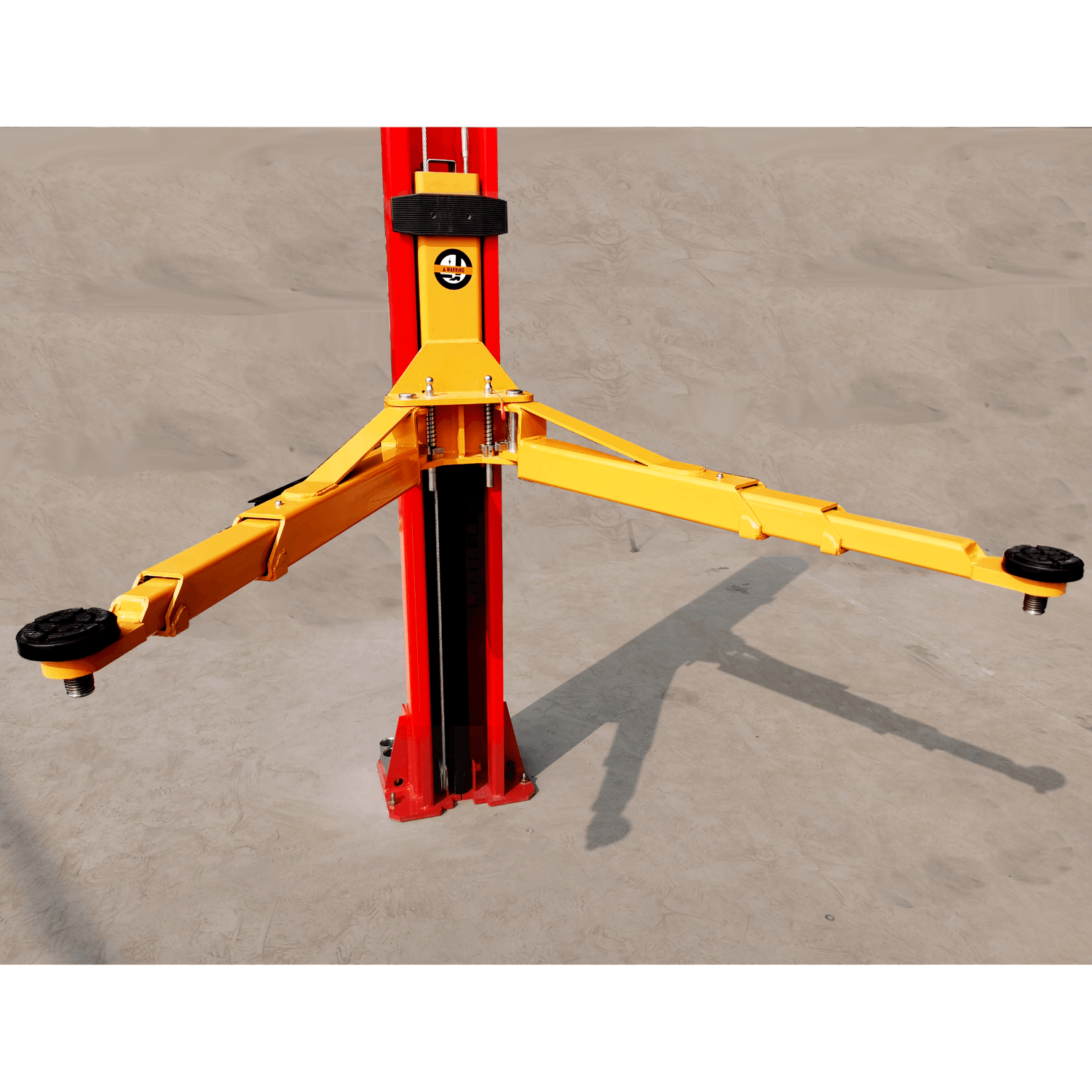

Symmetric arms.

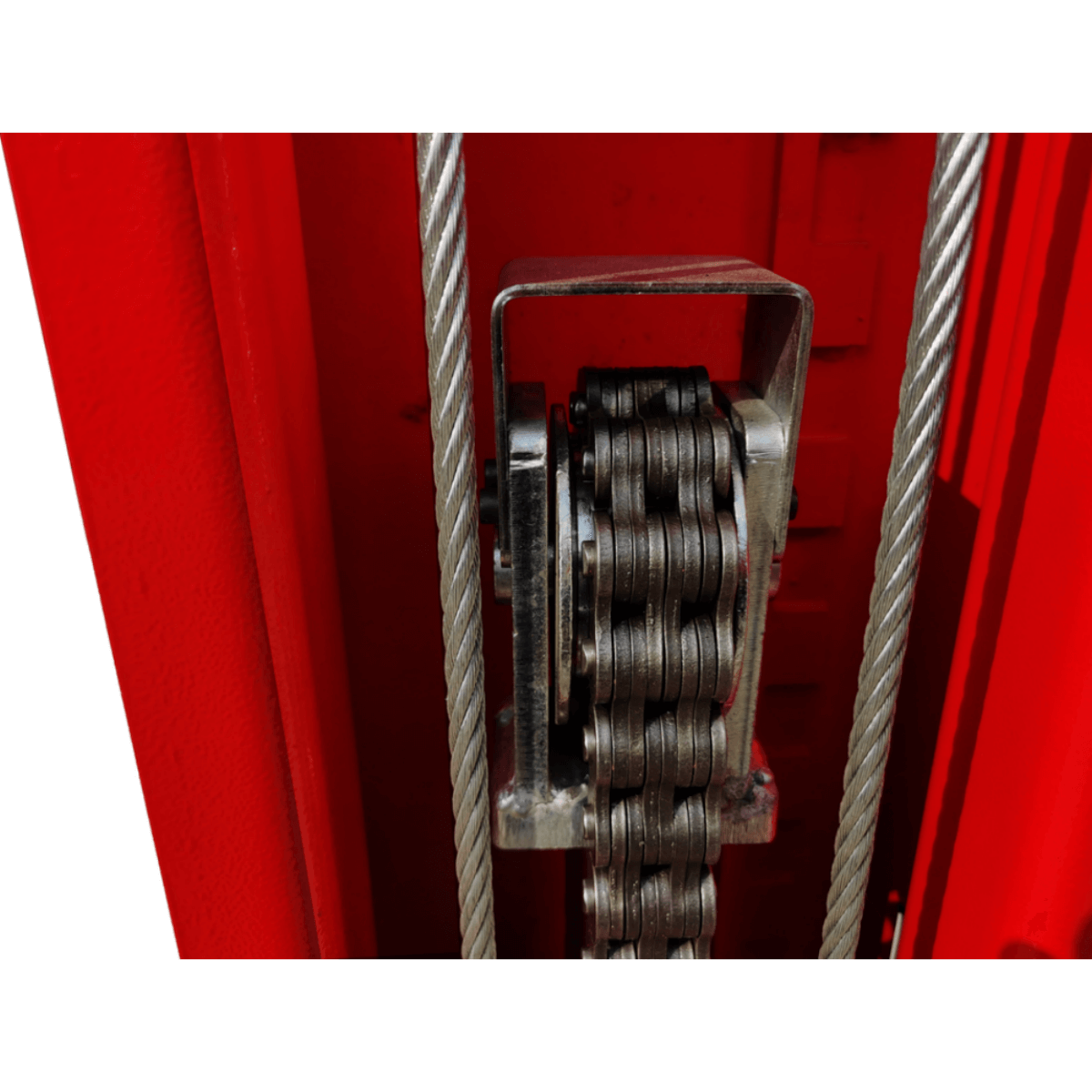

Dual Hydraulic Chain-Drive Cylinders.
Rubber pad door opening protection.

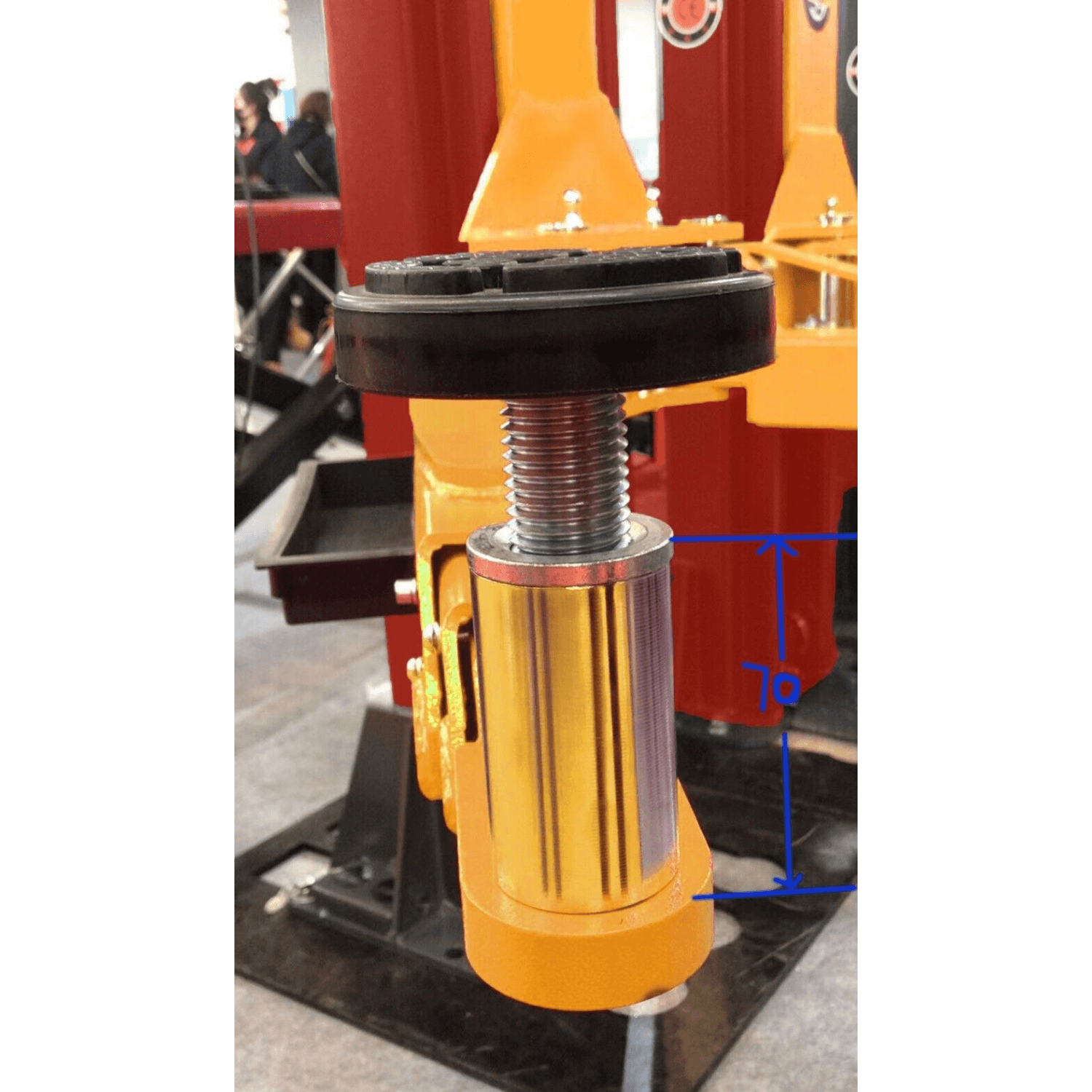

Comes with extended support adaptor sets of + 30 mm and + 120 mm.
Overhead safety shutoff bar.
Feet-protection safety guardrails with tools box.
High-quality hydraulic system with 220V/60HZ/1PH or 110V/ 60HZ/ 1PH (Optional).
Package Size
LxWxH (inch): 112"x18"x35.4"
Weight (lb): 1750
A forklift or equivalent is required for unloading
