KATOOL
KT-H105 Two Post Vehicle Lift 10,000lbs
KT-H105 Two Post Vehicle Lift 10,000lbs
Regular price
$2,899.00 USD
Regular price
$0.00 USD
Sale price
$2,899.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The KT-H105 Two Post Vehicle Lift offers expert-level precision with its symmetrical lifting arms and a strong 10,000 lbs capacity, delivering stable and balanced vehicle elevation. Its advanced bilateral unlocking mechanism ensures synchronized operation, enhancing safety throughout each lift. Perfect for professional workshops and serious DIYers, this lift handles a wide range of tasks, including routine servicing and tire changes. Designed for versatility and reliability, the KT-H105 supports various vehicle types, making it an essential tool for efficient automotive maintenance
Specifications

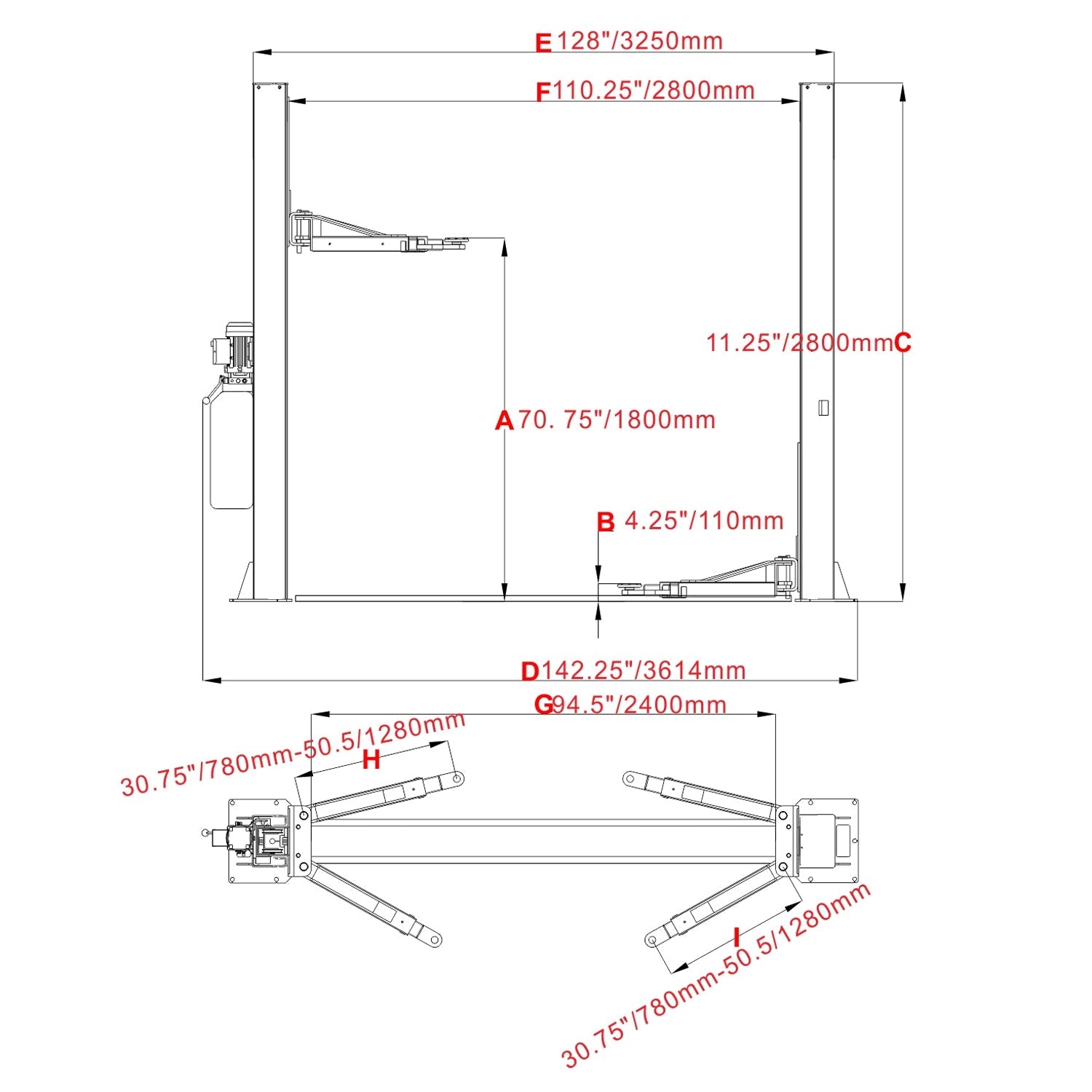

| Dimension(LxWxH) | |
| Net weight | 1257 lbs |
| Lifting Capacity | 10000lbs/4500KG |
| Max. Lifting Height | 70.8"/1800mm |
| Min. Height | 3.9"/100mm |
| Height Overall | 110.9"/2818mm |
| Width Overall | 140.4"/3565mm |
| Outside Column | 124.8"/3170mm |
| Inside Column | 110.2"/2800mm |
| Drive-Thru Clearance | 98.4"/2500mm |
| Front Arm Reach (Min) | 29.5"/750mm(2 stages) |
| Front Arm Reach (Max) | 46"/1170mm(2 stages) |
| Rear Arm Reach (Min) | 35.4"/900mm(2 stages) |
| Rear Arm Reach (Max) | 58.2"/1480mm(2 stages) |
| Motor | 220VAC/60HZ/1PH/2.2KW |
Feature
- 10000 lbs lifting capacity.
- CE Approved and Certified, it has adopted 115% dynamic loading capacity and 150% static loading capacity tested.
- Manual safety release from two sides.
- Base plate design.
- Dual Hydraulic Chain-Drive Cylinders.
- Robber pad door opening protection.

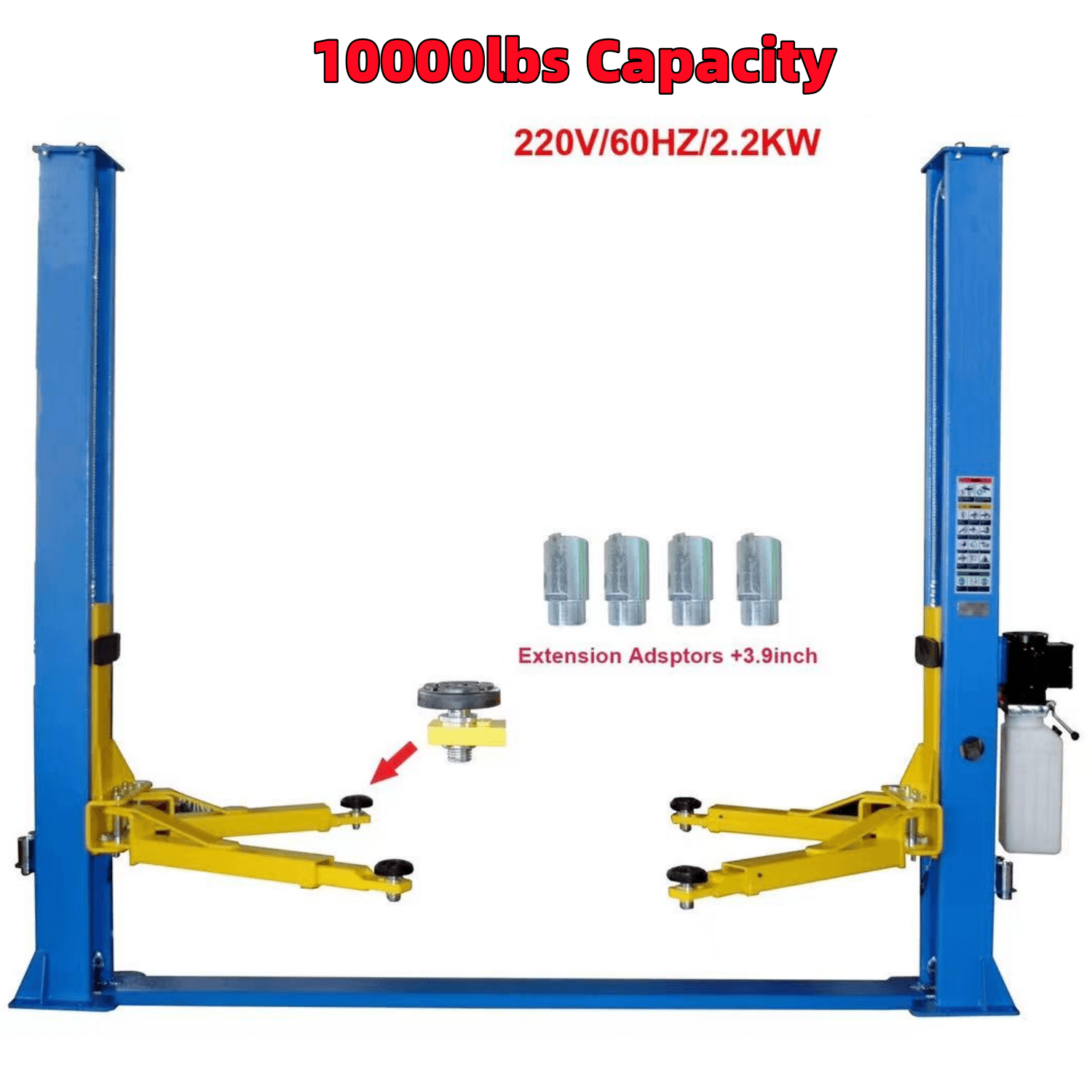

- Screw-on pad and extension support adaptor set +100mm.
- Top-level hydraulic system with 220V/60HZ/1PH.
Package Size
- LxWxH (inch): 112"x18"x35.4"
- Weight (lb): 1257
- A forklift or equivalent is required for unloading
