KATOOL

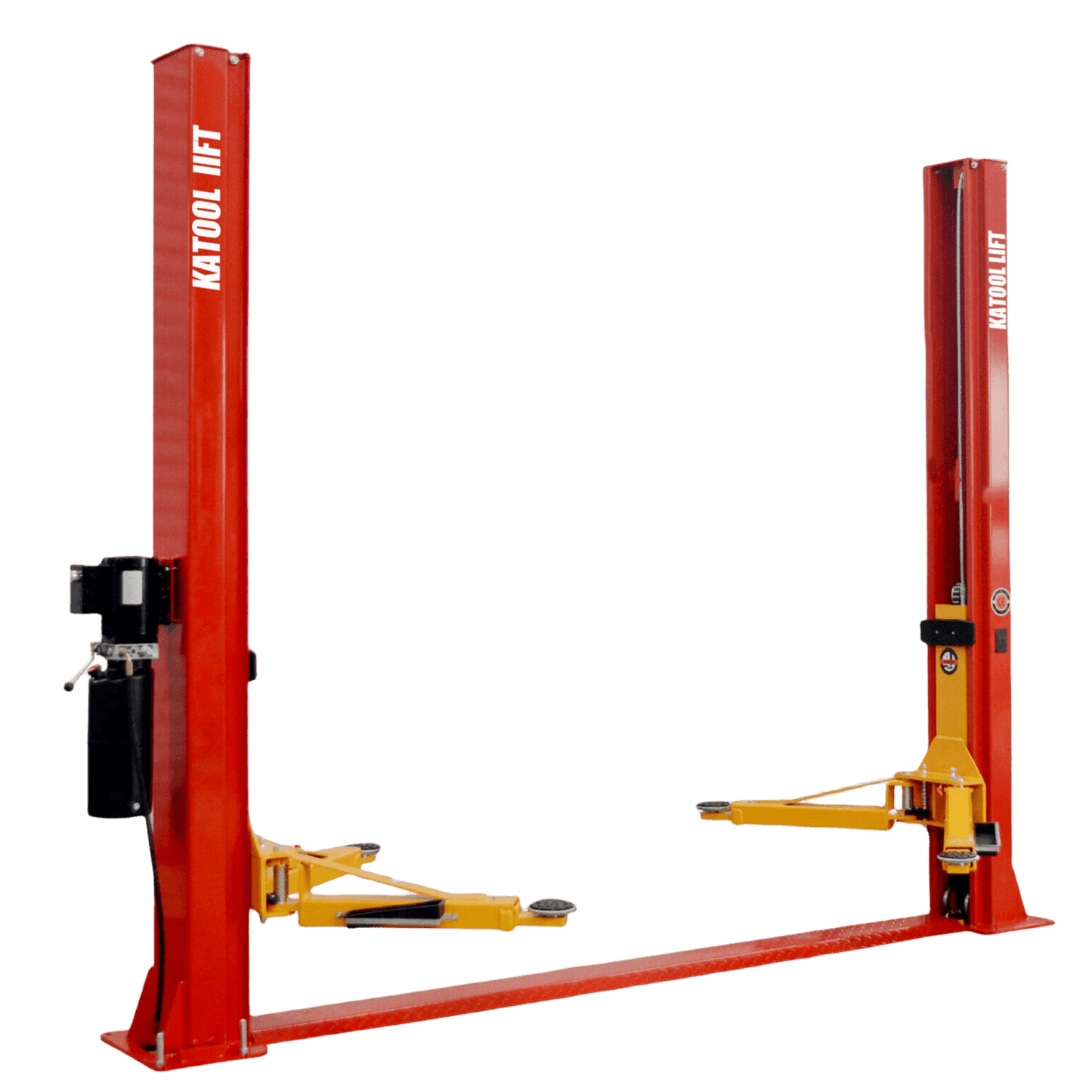

KT-H100 Two Post Vehicle Lift 10,000lbs

KT-H100 Two Post Vehicle Lift 10,000lbs

Regular price $2,799.00 USD
Regular price $0.00 USD Sale price $2,799.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Transform your garage with the KT-H100 Two Post Vehicle Lift, engineered for precision and strength. Featuring symmetrical lifting arms, it safely raises vehicles up to 10,000 lbs with balanced support. The dual unlocking mechanism enhances safety by ensuring synchronized operation. Ideal for both professional mechanics and serious DIYers, this lift simplifies maintenance tasks like tire changes and oil servicing. Compatible with a wide range of vehicles from compact cars to heavy SUVs, the KT-H100 is a reliable and essential tool for any automotive workspace. Experience dependable performance and expert-level functionality.

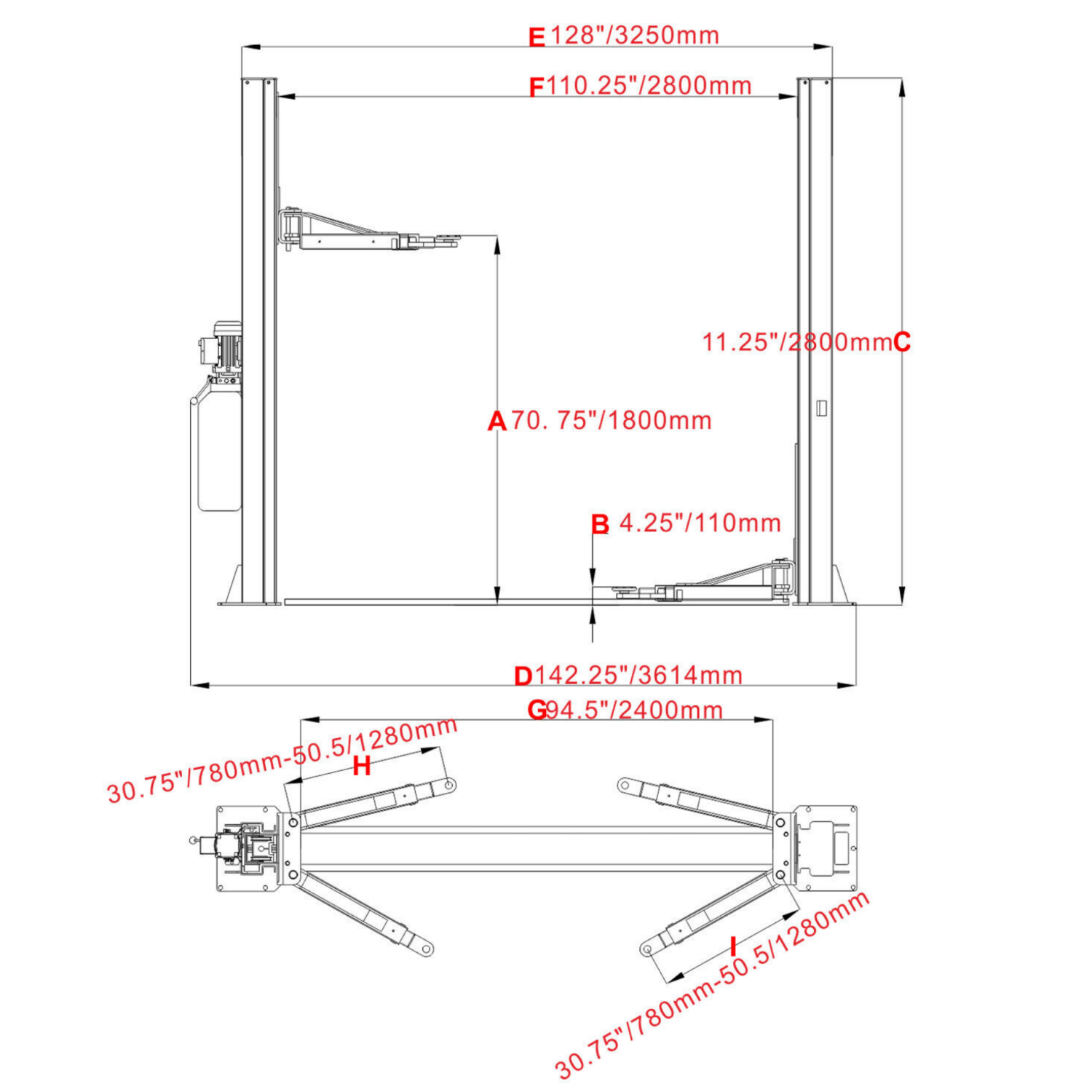

Specifications

Dimension(LxWxH)
Net weight 1256 lbs
Max. Lifting Height 70.75"/1800mm
Lifting Capacity 10000lbs/4500KG
Min. Height 4.25"/110mm
Height Overall 110.25"/2800mm
Width Overall 142.25"/3614mm
Outside Column 128"/3250mm
Inside Column 110.25"/2800mm
Drive-Thru Clearance 94.5"/2400mm
Front Arm Reach (Min) 30.75"/780mm (2 stages)
Front Arm Reach (Max) 50.5"/1280mm (2 stages)
Rear Arm Reach (Min) 30.75"/780mm (2 stages)
Rear Arm Reach (Max) 50.5"/1280mm (2 stages)
Motor 220VAC/60HZ/1PH/2.2KW

Feature

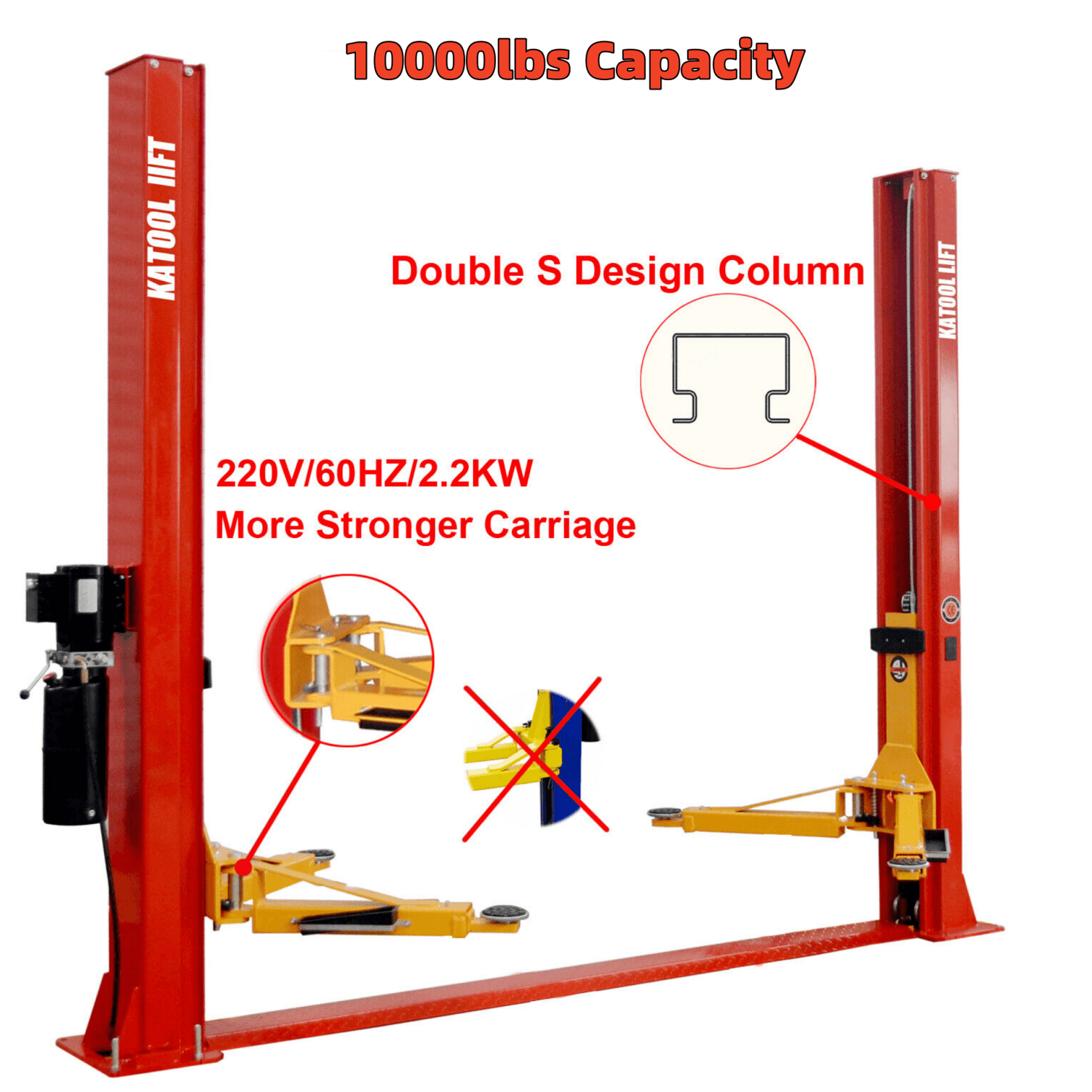

  • 10000 lbs lifting capacity.
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.

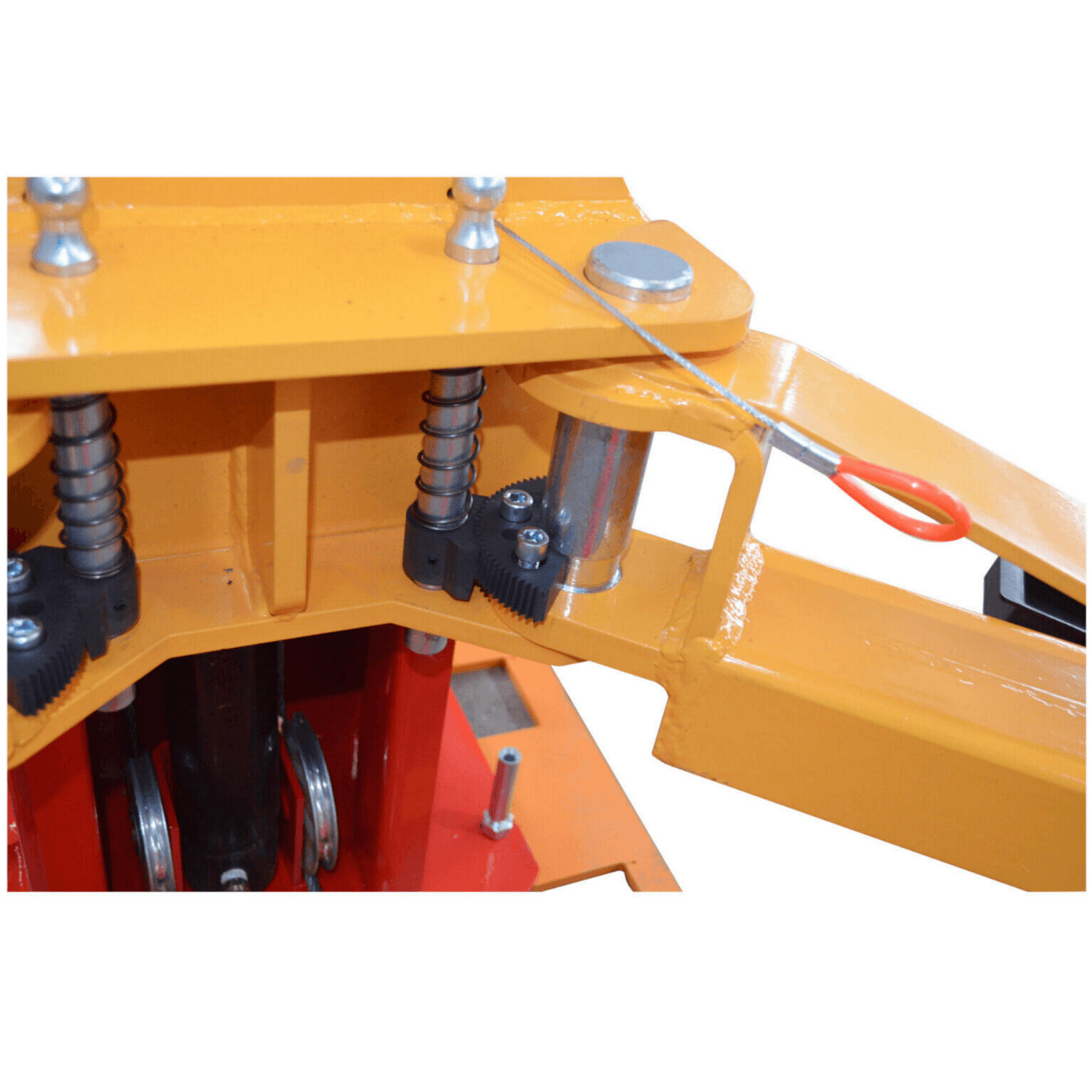

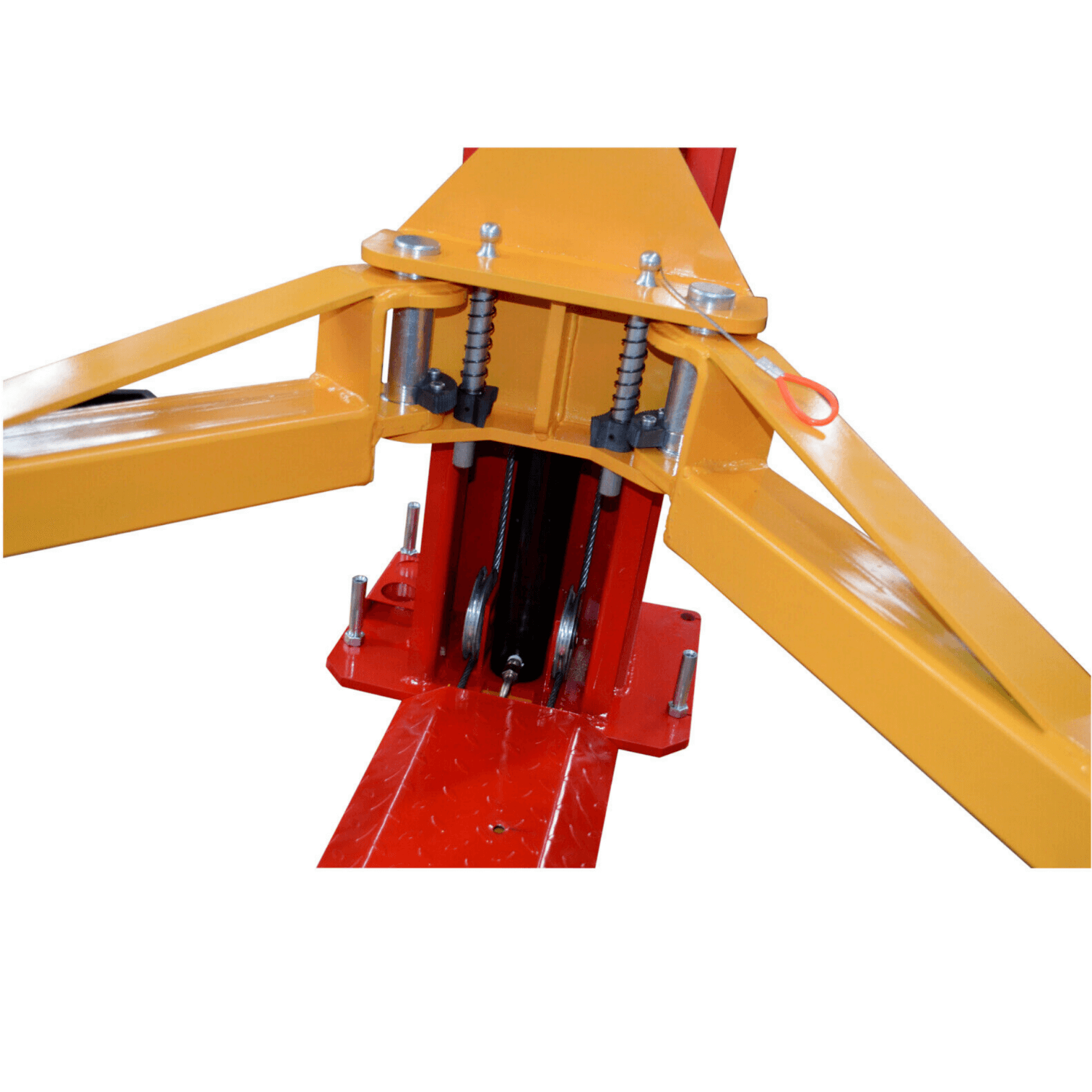

  • Manual safety release from two sides.

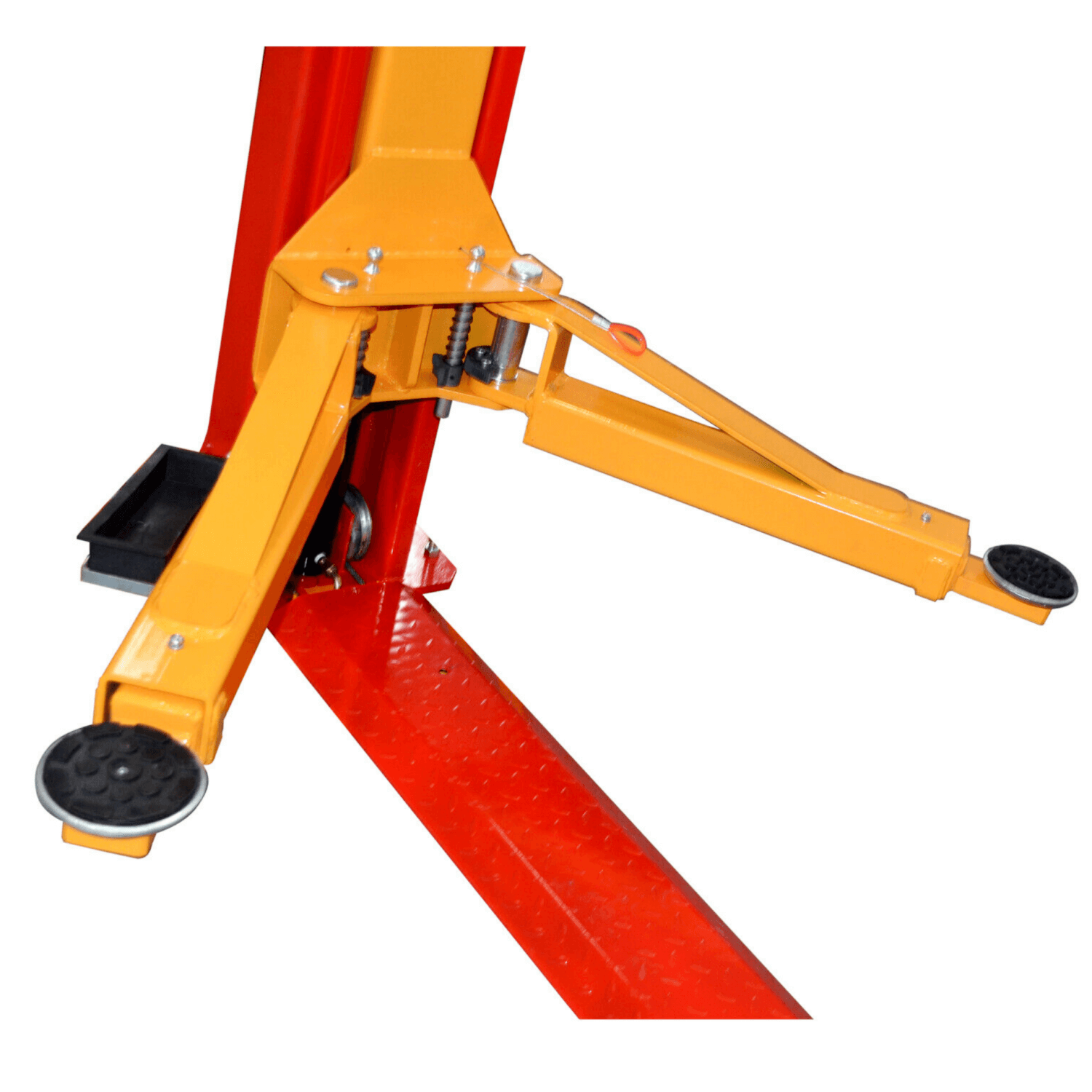

  • Symmetric arm.
  • Base plate design.
  • Dual Hydraulic Chain-Drive Cylinders.
  • Rubber pad door opening protection.
  • Comes with extension support adaptor sets of +30mm and +120mm.
  • Feet-protection safety guardrails with tools box.
  • Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH (Optional).

                    Package Size

                    • LxWxH (inch): 112"x18"x35.4"
                    • Weight (lb): 1256
                    • A forklift or equivalent is required for unloading
